The Most Versatile VoIP Provider: FREE PORTING

Security 101: A Fresh Look at Incredible PBX Security Audit Methodology

Incredible PBX remains one of the most secure VoIP server platforms on the planet for one simple reason. We always deploy a preconfigured Linux IPtables firewall with a whitelist that hides your server from everyone except you and trusted VoIP providers. IPtables is automatically configured and deployed as part of every initial install of Incredible PBX regardless of your platform. This includes XiVO with Debian 8 as well as CentOS 6 and 7, Ubuntu 14.04, Raspbian 7 and 8, and even SHMZ OS (not recommended). If your server happens to be housed behind a hardware-based firewall as well, then so much the better. That obviously isn’t possible with most Cloud-based servers so IPtables firewall security is a must.

Unlike most other VoIP server platforms, we don’t leave firewall configuration to chance. Nor do we assume you’re a firewall expert. It really doesn’t matter whether you are or not, you still need a server platform that is secure and protected. So we do it for you initially and, if you are a firewall expert or study to become one, you then can modify the default settings to meet your own requirements down the road. In the meantime, you and your server are protected.

As you probably have surmised, we conduct periodic security audits of our servers testing for vulnerabilities. And we perform these audits locally as well as remotely using servers we’ve deployed throughout the world. We also deploy honeypot servers from time to time in order to gather important information about what the bad guys are up to. With as many platforms as Incredible PBX now supports, just conducting local and remote security audits is no small feat.

Today we want to share some of the methodology we use in conducting our audits, and we’ll provide the results of our most recent remote security audit. We encourage everyone with a VoIP server, whether it’s Incredible PBX or some other platform, to periodically test your server(s) for vulnerabilities AND access. It not only could save you thousands of dollars, but it also protects the rest of us by assuring that you haven’t inadvertently provided malicious individuals with a zombie platform from which to launch denial of service and spam attacks against the Internet community. So let’s get started.

The first step in testing your server is to log into your server as root using SSH or Putty from multiple IP addresses. These sites should include logins from the home base of your server if it’s a dedicated machine, from your home PC, from a neighbor’s PC, from a public WiFi hotspot, and from your smartphone as well as someone else’s. If you gain access from all of these sites, you’ve got a problem. It means SSH access is not protected in any way on your server. While SSH is relatively secure, it has had its share of problems. And zero day vulnerabilities are regularly discovered in various Linux utilities so exposing all of your server’s important resources to the Internet is a very bad idea.

The second test deciphers the existing firewall rules that have been activated on your server: iptables -nL. If the results look like the following, you’ve got a major problem. It means there are no firewall rules blocking any access to your server:

root@incrediblepbx:~ $ iptables -nL

Chain INPUT (policy ACCEPT)
target     prot opt source               destination

Chain FORWARD (policy ACCEPT)
target     prot opt source               destination

Chain OUTPUT (policy ACCEPT)
target     prot opt source               destination

Next, reboot your server and repeat the first two tests to make certain that your firewall still is activated properly whenever your server experiences a power outage and comes back on line.

If your firewall is not running, try issuing the command, iptables-restart, and then retest: iptables -nL. If you get the same results shown above, then something has come unglued. Here’s how to easily fix things up. First, move to the directory where the iptables rules are stored on your server. For CentOS/SL/RHEL, it’s /etc/sysconfig. For Debian/Ubuntu/Raspbian, it’s /etc/iptables.

Next, copy the default Incredible PBX firewall settings to the proper file location.

For CentOS/SL/RHEL platforms:

cp -p /etc/sysconfig/rules.v4.ubuntu14 /etc/sysconfig/iptables
cp -p /etc/sysconfig/rules.v6.ubuntu14 /etc/sysconfig/ip6tables

For Debian/Ubuntu/Raspbian platforms:

cp -p /etc/iptables/rules.v4.ubuntu14 /etc/iptables/rules.v4
cp -p /etc/iptables/rules.v6.ubuntu14 /etc/iptables/rules.v6

Next, edit iptables (CentOS/SL/RHEL) or rules.v4 (Debian/Ubuntu/Raspbian) and move to the bottom of the file where you’ll find a section that looks like this:

# The IP addresses are your server, user, and public addresses respectively
-A INPUT -s 8.8.4.4 -j ACCEPT
-A INPUT -s 8.8.8.8 -j ACCEPT
-A INPUT -s 74.86.213.25 -j ACCEPT

Replace the existing IP addresses with the actual IP addresses of your server, user workstation, and public IP address. Be very careful here. If you don’t whitelist the IP address of the machine on which you are performing these tasks, you will lock yourself out when you restart your firewall. Once you’ve made the changes, save the file.

Finally, restart IPtables using the following command: iptables-restart. Then retest: iptables -nL.

We’re not going to spend a lot of time addressing what the proper firewall rules for your VoIP server should be. If you’re interested, you can take a look at the IPtables firewall setup that is deployed with Incredible PBX. On RHEL/CentOS/SL servers, you’ll find the firewall rules in /etc/sysconfig/iptables. On Debian/Ubuntu/Raspbian servers, the rules are in /etc/iptables/rules.v4. Suffice it to say that, if the only remote access required with your server is to connect to VoIP service providers, there is no reason to expose your web server or your SIP ports to the Internet, period. And this is true whether your server is sitting behind a hardware-based firewall or not.

The Incredible PBX security design uses a whitelist to provide access to most network services other than those that are absolutely essential to the operation of your server. The reason we use a whitelist is because blacklists don’t work. Those interested in doing harm to your server are perfectly capable of altering their IP addresses until they find one that isn’t blacklisted. And they also are adept at poisoning blacklists with IP addresses that are absolutely essential to the operation of your server, e.g. DNS servers and NTP servers.

As part of every Incredible PBX firewall install, we provide SIP and IAX access to many of the major VoIP providers around the globe. You may be wondering why we use IP addresses for providers rather than fully-qualified domain names. The reason is that IPtables doesn’t directly support FQDNs. Instead, when IPtables starts up, it looks up every FQDN and converts it into an IP address. If a server matching the FQDN happens to be off line, IPtables crashes and burns. The same is true if the lookup is attempted before DNS services are running on your server. So, the short answer to why we use IP addresses is because it is safer. The downside, of course, is you can’t eyeball the IP address and decipher to whom it belongs. If you ever have any doubt about the identity of the provider associated with any specific IP address, there’s a simple utility you can run to identify its owner: nslookup 178.63.143.236.

Here is a list of the providers included in the default Incredible PBX whitelist. Others can be added using the add-ip and add-fqdn utilities in /root. If you use FQDNs, be sure to add the entries to /root/ipchecker so that your IP addresses are periodically checked and updated when necessary. This is especially important for dynamic IP addresses at remote locations.

outbound1.vitelity.net
inbound1.vitelity.net
atlanta.voip.ms
chicago.voip.ms
dallas.voip.ms
houston.voip.ms
losangeles.voip.ms
newyork.voip.ms
seattle.voip.ms
tampa.voip.ms
montreal.voip.ms
montreal2.voip.ms
toronto.voip.ms
toronto2.voip.ms
london.voip.ms
didforsale.com
callcentric.com
sipgate.com
chi-in.voipstreet.com
did.voip.les.net
magnum.axvoice.com
proxy.sipthor.net
sip.voipwelcome.com
incoming.future-nine.com
outgoing.future-nine.com
DEN.teliax.net
LAX.teliax.net
NYC.teliax.net
ATL.teliax.net
IPkall (defunct) used two IP addresses: 66.54.140.46 and 66.54.140.47
gvgw1.simonics.com
sip2sip.info
googlelabs.com
talk.google.com
gmail.com

The major drawbacks to firewall whitelists are (1) you can inadvertently lock yourself out of your own server and (2) someone that needs access to your server from remote locations may have more difficulty connecting without intervention by a network administrator to authorize remote access. With Incredible PBX, we’ve provided some tools to ease the pain. First, Incredible PBX is deployed with both the PPTP and NeoRouter VPN platforms already in place. With a VPN IP address, remote logins are minimized because they work from almost anywhere. Second, Incredible PBX includes the PortKnocker utility which lets a remote user "knock" on the server using three randomly assigned port numbers to gain temporary access. Many Incredible PBX platforms also support Travelin’ Man 4 which lets you authorize remote access by telephone. You also need to test remote VPN, PortKnocker, and Travelin’ Man 4 access as part of your security audits.

Testing for vulnerabilities is only half of the puzzle. Also make certain that your server has the proper Linux tools in place to allow you to whitelist additional IP addresses so that remote users can deploy phones or gain access to your server when necessary. Try to run the nslookup and dig utilities to verify that they are installed on your server. If not, install them with yum install bind-utils (CentOS/SL/RHEL) or apt-get install dnsutils (Debian/Ubuntu/Raspbian).

Security Audit Results. We’re pleased to report that no vulnerabilities were identified in any of the Incredible PBX platforms; however, good security practices dictate that the IPkall IP addresses should probably be removed from the whitelist now that the company has ceased providing VoIP services.

For CentOS/SL/RHEL platforms:

sed -i '/66.54.140.46/d' /etc/sysconfig/iptables
sed -i '/66.54.140.47/d' /etc/sysconfig/iptables
sed -i '/66.54.140.46/d' /etc/sysconfig/rules.v4.ubuntu14
sed -i '/66.54.140.47/d' /etc/sysconfig/rules.v4.ubuntu14
iptables-restart

For Debian/Ubuntu/Raspbian platforms:

sed -i '/66.54.140.46/d' /etc/iptables/rules.v4
sed -i '/66.54.140.47/d' /etc/iptables/rules.v4
sed -i '/66.54.140.46/d' /etc/iptables/rules.v4.ubuntu14
sed -i '/66.54.140.47/d' /etc/iptables/rules.v4.ubuntu14
iptables-restart

We did identify a couple of access anomalies that kept the add-ip and add-fqdn utilities in /root from functioning properly. These glitches meant that a few administrators could not easily add remote IP addresses to their whitelists. Three fixes are recommended. First, be sure the utilities documented in the previous paragraph are installed on your server. Second, on CentOS/SL/RHEL platforms or servers installed using the Incredible PBX ISO, issue the following commands after logging into your server as root:

sed -i 's|/etc/iptables/rules.v4|/etc/sysconfig/iptables|' /root/add-ip
sed -i 's|/etc/iptables/rules.v4|/etc/sysconfig/iptables|' /root/add-fqdn

Third, for Incredible PBX deployments on the CentOS 7 platform, issue these commands while logged in as root:

 chattr -i /root/add-ip
 sed -i 's|iptables-persistent|iptables|' /root/add-ip
 chattr +i /root/add-ip

Be safe!

Originally published: Tuesday, August 9, 2016





Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

Taking a Fresh Look at the Asterisk, FreePBX, and Incredible PBX Security Models

About once a year, we try to shine the spotlight on Asterisk® security in hopes of saving lots of organizations and individuals a little bit (or a lot) of money. In light of last week’s major security lapse in the Asterisk® dialplan of those using FreePBX® since the Asterisk@Home days, now seemed like a good time for a review. As we’ve noted before, the problem with open source phone systems is they’re open source phone systems. So the bad guys can figure out how they work just like the good guys. Unfortunately, some of the bad guys are paying particular attention to Asterisk and FreePBX so it behooves all of us to remain vigilant and patch vulnerabilities quickly. The FreePBX Devs have done an admirable job in responding quickly to this issue.

Last week’s vulnerability involves the call transfer methodology that has been incorporated into FreePBX-based Asterisk servers for at least a decade. In a nutshell, it allows an internal or outside caller or called party to transfer a call using touchtones instead of a dedicated transfer button or hook flash. ## performs a blind transfer while *2 sets up an attended transfer where the person transferring the call can actually talk to the transfer recipient before executing the call transfer. Some of our foreign friends used this *2 methodology to initiate calls to Asterisk servers and then to transfer those calls to expensive destinations while the other party to the call listened to music on hold. Worse yet, it could be performed within an answering IVR on some servers so the administrator never knew the call transfer took place other than reviewing the call detail records. As with some previous vulnerabilities, this one had lain dormant since the inception of call transfer technology in Asterisk. The default settings in FreePBX permitted outside calling or called parties to initiate transfers using these feature codes. We’re reminded of a similar vulnerability that used to exist in many Asterisk voicemail systems that allowed callers to dialout to another number from within the voicemail system.

We hope to persuade you today that allowing transfer of calls using touch tones is a very bad idea to begin with. Even when you don’t get a surprise phone bill, it often results in unanticipated consequences such as depicted in this video shared on DSL Reports:



Here’s how you can protect any server that uses all or some of the FreePBX GUI. First, be aware that the FreePBX developers are working on a rewrite of the Core component in versions 13 and 12. The fix would limit use of this technology to those on the internal side of a PBX. In other words, remote callers would be blocked from calling into an Asterisk server and transferring themselves to a phone on a cruise ship sailing in the Indian Ocean. In the meantime, issuing the following commands will patch things up:

mysql -uroot -ppassw0rd asterisk -e "update freepbx_settings set value = 'tr' where keyword = 'DIAL_OPTIONS' limit 1"
mysql -uroot -ppassw0rd asterisk -e "update freepbx_settings set value = '' where keyword = 'TRUNK_OPTIONS' limit 1"
amportal a r

For those using Incredible PBX™, the Automatic Update Utility will patch your server the next time you log in as root.

Olle Johansson has been one of the primary shakers and movers when it comes to educating folks on Asterisk security and inspiring developers to do a better job designing these systems. If you didn’t attend AstriCon 2013 and haven’t watched the Security Master Class, put these videos on your Bucket List. They’re all free and well worth your time.

When we began building out Incredible PBX on other platforms several years ago, we decided it was an opportune time to revisit our Asterisk security model and make it as bullet-proof as possible given the number of people now deploying Asterisk servers in the cloud. As a practical matter, there are no hardware-based firewalls to protect you with many of the cloud-based systems. So you literally live or die based upon the strength of your own software-based security model.

As in the past, security is all about layers of protection. A bundle of sticks is harder to break than a single stick. There now are Incredible PBX builds for CentOS, Scientific Linux, Ubuntu 14, and the latest Raspbian 8 for the Raspberry Pi 2 and 3. All of these releases include the new Incredible PBX security model. Here’s how it works…

The 7 Security Layers include the following, and we will go into the details below:

  1. Preconfigured IPtables Linux Firewall
  2. Preconfigured Travelin’ Man 3 WhiteLists
  3. Randomized Port Knocker for Remote Access
  4. TM4 WhiteListing by Telephone (optional)
  5. Fail2Ban
  6. Randomized Ultra-Secure Passwords
  7. Automatic Security Updates & Bug Fixes

1. IPtables Linux Firewall. Yes, we’ve had IPtables in place with PBX in a Flash for many years. And, yes, it was partially locked down in previous Incredible PBX releases if you chose to deploy Travelin’ Man 3. Now it’s automatically installed AND locked down, period. As installed, the new Incredible PBX limits login access to your server to those on your private LAN (if any) and anyone logging in from the server’s public or private IP address and the public IP address of the desktop machine used to install the Incredible PBX software. If you or your users need access from other computers or phones, those addresses can be added quickly using either the Travelin’ Man 3 tools (add-ip and add-fqdn) or using the Port Knocker application running on your desktop or smartphone. All you need is your randomized 3 codes for the knock. You can also enable a remote IP address by telephone. Keep reading!

2. Travelin’ Man 3 WhiteLists. As in the past, many of the major SIP providers have been whitelisted in the default setup so that you can quickly add new service without worrying about firewall access. These are providers that we’ve used over the years. The preconfigured providers include Vitelity (outbound1.vitelity.net and inbound1.vitelity.net), Google Voice (talk.google.com), VoIP.ms (city.voip.ms), DIDforsale (209.216.2.211), CallCentric (callcentric.com), and also VoIPStreet.com (chi-out.voipstreet.com plus chi-in.voipstreet.com), Les.net (did.voip.les.net), Future-Nine, AxVoice (magnum.axvoice.com), SIP2SIP (proxy.sipthor.net), VoIPMyWay (sip.voipwelcome.com), Obivoice/Vestalink (sms.intelafone.com), Teliax, and IPkall. You are, of course, free to add other providers or users using the whitelist tools being provided. add-ip lets you add an IP address to your whitelist. add-fqdn lets you add a fully-qualified domain name to your whitelist. del-acct lets you remove an entry from your whitelist. Because FQDNs cause problems with IPtables if the FQDN happens to be invalid or non-functional, we’ve provided a customized iptables-restart tool which will filter out bad FQDNs and start up IPtables without the problematic entries.

Be advised that whitelist entries created with PortKnocker are stored in RAM, not in your IPtables file. These RAM entries will get blown out of the water whenever your system is restarted OR if IPtables is restarted. Stated another way, PortKnocker should be used as a stopgap tool to get new IP addresses qualified quickly. If these addresses need access for more than a few hours, then the Travelin’ Man 3 tools should be used to add them to your IPtables whitelist. If your whitelist setup includes dynamic IP addresses, be aware that using ipchecker in a cron job to test for changing dynamic IP addresses will remove PortKnocker whitelist RAM entries whenever an IP address change triggers an iptables-restart.

For more detail on Travelin’ Man 3, review our original tutorial.

3. PortKnocker WhiteListing. We’ve previously written about PortKnocker so we won’t repeat the article here. Simply stated, it lets you knock on three ports on a host machine in the proper order to gain access. If you get the timing and sequence right, the IP address from which you knocked gets whitelisted for access to the server… with appropriate admin or root passwords, of course. The knocking can be accomplished with either a command line tool or an iOS or Android app using your smartphone or tablet. As noted above, it’s a terrific stopgap tool to let you or your users gain quick access to your server. For the reasons we’ve documented, don’t forget that it’s a stopgap tool. Don’t use it as a replacement for Travelin’ Man 3 whitelists unless you don’t plan to deploy dynamic IP address automatic updating. Just to repeat, PortKnocker whitelists get destroyed whenever IPtables is restarted or your server is rebooted. You’ve been warned.

4. TM4 WhiteListing by Telephone. Newer releases of Incredible PBX are preconfigured with ODBC support for telephony applications. One worth mentioning is our new Travelin’ Man 4 utility which lets a remote user dial into a dedicated DID and register an IP address to be whitelisted on the server. Within a couple minutes, the user will be sent an email confirming that the IP address has been whitelisted and remote access is now enabled. For phone systems and administrators supporting hundreds of remote users, this new feature will be a welcome addition. It can be configured in a couple minutes by following the Installation instructions in the Travelin’ Man 4 tutorial. Unlike PortKnocker, whitelisted IP addresses added with TM4 are permanent until modified by the remote user or deleted by the administrator.

5. Fail2Ban. We’ve never been a big fan of Fail2Ban which scans your logs and blacklists IP addresses after several failed attempts to log in or register with SSH or Apache or Asterisk. The reason is because of documented cases where attacks from powerful servers (think: Amazon) completely overpower a machine and delay execution of Fail2Ban log scanning until tens of thousands of registration attempts have been launched. The FreePBX folks are working on a methodology to move failed login attempts to a separate (smaller) log which would go a long way toward eliminating the log scanning bottleneck. In the the meantime, Fail2Ban is included, and it works when it works. But don’t count on it as your only security layer.

6. Randomized Passwords. With the new security model described above, we’ve dispensed with Apache security to protect FreePBX® access. These new Incredible PBX releases rely upon the FreePBX security model which uses encrypted passwords stored in MySQL or MariaDB. As part of the installation process, Incredible PBX randomizes ALL FreePBX passwords including those for the default 701 extension as well as the admin password. When your new Incredible PBX install completes, the most important things to remember are your (randomized) FreePBX admin password AND the (randomized) 3 ports required for Port Knocker access. Put them in a safe place. Sooner or later, you’ll need them. You can review your PortKnocker settings in /root/knock.FAQ. We’ve also included admin-pw-change in the /root folder for those that are too lazy to heed our advice. With the new security model, there is no way to look up your admin password. All you can do is change it… assuming you haven’t also forgotten your root password. 😉

7. Automatic Update Service. All new Incredible PBX builds include an automatic update service to provide security patches and bug fixes whenever you log into your server as root. It saved you just last week! If you don’t want the updates for some reason, you can delete the /root/update* file from your server. If the cost of maintaining this service becomes prohibitive, we may implement a pay-for-service fee, but it presently is supported by voluntary contributions from our users. It has worked extremely well and provided a vehicle for pushing out updates that affect the reliability and security of your server.

A Word About IPv6. Sooner or later Internet Protocol version 6 will be upon us because of the exhaustion of IPv4 IP addresses. Incredible PBX is IPv6-aware and IPtables has been configured to support it as well. As deployed, outbound IPv6 is not restricted. Inbound access is limited to localhost. You, of course, are free to modify it in any way desired. Be advised that disabling IPv6 localhost inbound access will block access to the FreePBX GUI. Don’t ask us how we know. 🙂

Originally published: Monday, April 18, 2016





Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

It’s Back: $10.50 Buys an Incredible PBX in the Cloud For Life… If You Hurry

In January, we began our new series on Cloud Computing by documenting how to build an awesome LAMP server in the Cloud using Linux. Today we’re again going to show you how to use the same Cloud platform and take advantage of the $10.50 coupon code TAKE70 to build an Incredible PBX in the Cloud FOR LIFE. When you’re finished, you’ll have a state-of-the-art Incredible PBX 13 server with hundreds of PBX features including free calling to the U.S. and Canada using any (free) Google Voice account. Keep in mind this isn’t $10.50 a month for your cloud server. It’s $10.50, period! The whole project takes less than an hour. Before we begin, let’s revisit our cautionary note for those that missed it in the previous article. It’s important.

There’s lots to hate at Cloud At Cost, a Canadian provider that offers virtual machines in the cloud for a one-time fee with no recurring charges. For $35 $10.50, you get a virtual machine with 512MB of RAM, 10GB of storage, and a gigabit Internet connection FOR LIFE. We haven’t seen a week go by when Cloud at Cost didn’t offer some sort of discount. Today it’s 70% which brings the total cost down to $10.50. That’s less than a burger at Five Guys. That’s the good news. But, if security, 99.999% reliability, performance, and excellent customer support are your must-haves, then look elsewhere. So why would anyone in their right mind sign up for a cloud solution that didn’t offer those four things? Did we mention it’s $10.50 for a lifetime cloud server?

If you take our recommendation and plunk down your $10.50, you’ll need to go into this with the right attitude. It’s not going to be flawless perfection computing. It’s a sandbox on which to experiment with [VoIP] and Cloud Computing. Will your virtual machine disintegrate at some juncture? Probably. Our experience is that the first couple days are critical. If you start seeing sluggish performance which degenerates to zero, don’t waste your time. Take good notes as you go along, delete the virtual machine, and rebuild a new one. It won’t cost you a dime, and it’ll save you hours of frustration. We suspect that bad folks get onto some of the servers and delight in bringing the machines to their knees. So the quicker you cut your losses, the better off you will be. Is CloudAtCost a good solution for production use? Absolutely Probably not so don’t try to fit a square peg in the round hole. It’s not gonna work, and you WILL be disappointed.

Today’s experiment will give you a platform on which to learn before you decide upon a more permanent deployment solution. And it will give you a terrific home for a backup server once you do move to a long-term solution so your $10.50 won’t be wasted.


The objective today is to show you how to build a rock-solid, secure VoIP server in the Cloud with all the bells and whistles you’d typically find on a PBX costing tens of thousands of dollars. Incredible PBX is pure GPL, open source code with one major difference. It’s FREE! And it’s supported by thousands of users on the PIAF Forum that started just like you.

Some of you are probably wondering why you would want a PBX at all. Hearing is believing as they say. Spend a couple minutes and call our CloudAtCost demo server. We preconfigured it using everything provided in today’s tutorial. It’ll let you play with some of the features that a PBX offers such a voice dialing from a directory, news and weather forecasts, and much more. And, in case you’re wondering, it’s been running 24/7 for two full months without a single hiccup. To try it for yourself, just dial:

Nerd Vittles Demo IVR Options
1 – Call by Name (say “Delta Airlines” or “American Airlines” to try it out)
2 – MeetMe Conference (password is 1234)
3 – Wolfram Alpha (say “What planes are flying overhead now?”)
4 – Lenny (The Telemarketer’s Worst Nightmare)
5 – Today’s News Headlines
6 – Weather Forecast (Just enter your ZIP Code!)
7 – Today in History
8 – Speak to a Real Person (or maybe just voicemail if we’re out)

For long time readers of Nerd Vittles, you already know that the component we continually stress is security. Without that, the rest really doesn’t matter. You’ll be building a platform for someone else to hijack and use for nefarious purposes. When we’re finished today, you’ll have a cloud-based VoIP server that is totally invisible to the rest of the world except a short list of VoIP providers that have been thoroughly vetted by Nerd Vittles staff. You can whitelist additional locations and phones to meet your individual needs without worrying about your server being compromised.

Creating Your Virtual Machine Platform in the Cloud

To get started, you’ve got to cough up your $10.50 at Cloud at Cost using coupon code TAKE70. Once you’ve signed up, CloudAtCost will send you credentials to log into the Cloud at Cost Management Portal. Change your portal password IMMEDIATELY after logging in. Just go to SETTINGS and follow your nose. HINT: DC2 is the preferred data center!

To create your virtual machine, click on the CLOUDPRO button and click Add New Server. If you’ve only purchased the $10.50 CloudPRO 1 platform, then you’ll need all of the available resources shown in the pick list. Leave CentOS 6.7 64bit selected as the OS Type and click Complete. Depending upon the type of special pricing that Cloud at Cost is offering when you sign up, the time to build your virtual machine can take anywhere from a minute to the better part of a day. Things have settled down since the 90% off week so new servers typically are ready in a few minutes. However, we’ve learned to build new virtual machines at night where possible. Then they’re usually available for use by the next morning. Luckily, this slow performance does not impact existing virtual machines that already are running in the CloudAtCost hosting facilities.

Initial Configuration of Your CentOS 6.7 Virtual Machine

With a little luck, your virtual machine soon will appear in your Cloud at Cost Management Portal and look something like what’s shown above. The red arrow points to the i button you’ll need to click to decipher the password for your new virtual machine. You’ll need both your IP address and the password for the new virtual machine in order to log into the server which is now up and running with a barebones CentOS 6.7 operating system. Note the yellow caution flag. That’s telling you that Cloud at Cost will automatically shut down your server in a week to save (them) computing resources. You can change the setting to keep your server running 24/7. Click Modify, Change Run Mode, and select Normal – Leave Powered On. Click Continue and OK to save your new settings.

Finally, you’ll want to change the Host Name for your server to something more descriptive than c7…cloudpro.92… Click the Modify button again and click Rename Server to change it. IncrediblePBX13 has a nice ring to it, but to each his own.

Logging into Your New CentOS 6.7 Virtual Machine

In order to configure and manage your new CentOS 6.7 virtual machine, you’ll need to log into the new server using either SSH or, for Windows users, Putty. After installing Putty, run it and log in to the IP address of your VM with username root and the password you deciphered above. On a Mac, open a Terminal session and issue a command like this using the actual IP address of your new virtual machine:

ssh root@12.34.56.78

Before you do anything else, reset your Virtual Machine’s root password to something very secure: passwd

Next, let’s address a couple of CloudAtCost quirks that may cause problems down the road. CloudAtCost has a nasty habit of not cleaning up after itself with fresh installs. The net result is your root password may get reset every time you reboot even though you changed it.

sed -i '/exit 0/d' /etc/rc.local
killall plymouthd
echo killall plymouthd >> /etc/rc.local
rm -f /etc/rc3.d/S97*
echo "exit 0" >> /etc/rc.local

Installing Incredible PBX 13 with CentOS 6.7

Now we’re ready to build your VoIP server platform. There aren’t many steps so just cut-and-paste the code into your SSH or Putty session and review the results to make sure nothing comes unglued. If something does, the beauty of virtual machines is you can delete them instantly within your management portal and just start over whenever you like. So here we go…

We’ll begin by permanently turning off SELINUX which causes more problems than it solves. The first command turns it off instantly. The second line assures that it’ll stay off whenever you reboot your virtual machine.

setenforce 0
sed -i s/SELINUX=enforcing/SELINUX=disabled/g /etc/selinux/config

Now let’s bring CentOS 6.7 up to current specs and add a few important applications:

yum -y update
yum -y install net-tools nano wget tar
reboot

Once your server reboots, we’re ready to kick off the Incredible PBX 13 install:

cd /root
wget http://incrediblepbx.com/incrediblepbx13-12.2-centos.tar.gz
tar zxvf incrediblepbx*
./IncrediblePBX*

When the install begins, read the license agreement and press ENTER to agree to the terms and get things rolling. Now would be a great time to go have breakfast or lunch. Come back in about an hour and your server should be ready to go.

Implementing Dynamic DNS Service on Your Client Machines

Unlike some other PBX offerings that leave your server exposed to the Internet, Incredible PBX is different. Unless the IP address from which you are accessing the server has been whitelisted, nobody on the Internet can see your server. The only exception is the preferred providers list and those on the same local area network (which is nobody in the case of CloudAtCost). As part of the Incredible PBX install, the IP address of the computer you used to perform the install was whitelisted automatically. But there may be other computers from which you wish to allow access to the PBX in order to deploy telephones at remote sites. Some of these sites may have dynamic IP addresses that change from time to time. Or you may have traveling salesman that land in a new hotel almost every night with a new IP address. Fortunately, there are a number of free and paid Dynamic DNS providers. For sites with dynamic IP addresses, simply choose a fully-qualified domain name (FQDN) to identify each location where you need computer access or need to deploy a phone. Then run a dynamic DNS update utility periodically from a computer or router at that site. It reports back the current public IP address of the site and your DNS provider updates the IP address assigned to that FQDN whenever there are changes.

DNS update clients are available for Windows, Mac OS X, and many residential routers. They’re also available for Android devices. Then it’s just a matter of plugging in the remote users’ FQDNs so Incredible PBX knows to give them server access via the whitelist. You implement this in seconds using the add-ip and add-fqdn utilities in the /root directory.

There are other ways to gain access as well using the PortKnocker utility or Travelin’ Man 4 from a telephone. Both of these are covered in the Incredible PBX 13 tutorial so we won’t repeat it here.

Incredible PBX Preliminary Setup Steps

First, let’s check things out and make sure everything is working as it should. With your favorite web browser, visit the IP address of your new server. You should see the default Incredible PBX page, the Kennonsoft Menu. It’s divided into two parts, a Users tab (shown below) and an Admin tab with additional options that we’ll cover shortly.

Now we need to jump back to SSH or Putty and log back into your server as root. You’ll note that the Incredible PBX Automatic Update Utility is run each time you log in. This is how important security updates are pushed to your server so do it regularly. And, no, you don’t need to contribute to our open source projects unless you want to. You’ll still get the updates as they are released.

After the Automatic Update Utility runs, the login script will execute status which tells you everything you need to know about the health of your server. After the initial install, it will look something like this with your server’s IP address obviously. We’ll cover the RED items down the road a bit.

For now, we need to complete a few preliminary setup steps for Incredible PBX to make sure you can log into the various components which have been installed on your computer. There are several different credentials you will need. Most of these are configured using scripts in the /root folder of your server. First, you need your root password for the server itself, and you should have already set that up with a very secure password using passwd. These same credentials are used to login to WebMin.

Next you’ll need an admin password for the Incredible PBX GUI. This is the management utility and Asterisk® code generator which consists of FreePBX® GPL modules that are open source and free to use. The admin password is set by running admin-pw-change in the /root directory.

There are also a number of web-based applications such as Telephone Reminders, AsteriDex, phpMyAdmin, and VoiceMail & Recordings (User Control Panel). You obviously don’t want everyone with a telephone using all of these applications so they are protected using a couple different Apache web server credentials. First, you set up an admin password for the administrator-level applications using the htpasswd utility. Then you set up an end-user account and password for access to AsteriDex, Reminders, and the User Control Panel. With the User Control Panel, end users also will need a username and password for their particular phone extension and this is configured with the Incredible PBX GUI using Admin -> User Management -> Add New User. If this sounds convoluted, it’s really not. Apache credentials can be entered once in an administrator’s or end user’s browser and they’re stored permanently.

Here is a checklist of the preliminary steps to complete before using your server:

Make your root password very secure: passwd
Create admin password for Incredible PBX GUI access: /root/admin-pw-change
Create admin password for web apps: htpasswd /etc/pbx/wwwpasswd admin
Create joeuser password for web apps: htpasswd /etc/pbx/wwwpasswd joeuser
Set up UCP accounts for Voicemail & Recordings access using Incredible PBX GUI
Make a copy of your Knock codes: cat /root/knock.FAQ

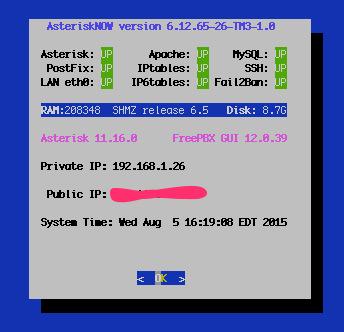

Decipher IP address and other info about your server: status
Set your correct time zone: /root/timezone-setup

Activating Incredible Fax on Your Server

Incredible PBX also includes an optional (and free) faxing component that lets you send and receive faxes that are delivered to your email address. To activate Incredible Fax, run the following script and plug in your email address for delivery of incoming faxes: /root/incrediblefax11.sh. After entering your email address, you’ll be prompted for all sorts of additional information. Unless you have unusual requirements, pressing the ENTER key at every prompt is the appropriate response. You’ll need to reboot your server again when the fax installation is complete. Once you log back into your server as root, the bottom line of the status display should now be green UP entries.

Managing Your Server with the Incredible PBX GUI

About 99% of your time managing your server will be spent in the Incredible PBX GUI. To access it, fire up your browser and point to the IP address of your server. At the Kennonsoft menu, click on the Users tab which will change to Admin and bring up the Admin menu shown here:

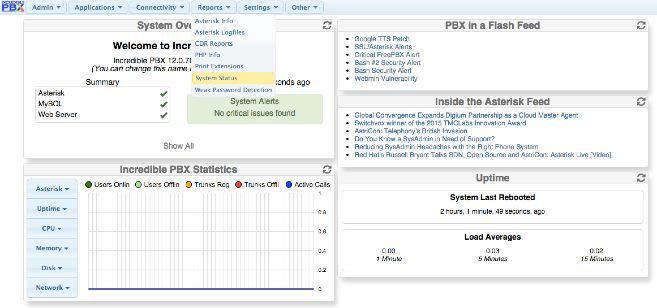

From the Administrator menu in the Kennonsoft GUI, click on Incredible PBX Administration. This will bring up the following menu:

Click on the first icon to access the Incredible PBX GUI. You’ll be prompted for your credentials. For the username, enter admin. For the password, enter the password you set up using admin-pw-change above. You should then be greeted by the main status display in the Incredible GUI:

If you’re new to Asterisk and FreePBX, here’s the one paragraph primer on what needs to happen before you can make free calls with Google Voice. You’ll obviously need a free Google Voice account. This gets you a phone number for people to call you and a vehicle to place calls to plain old telephones throughout the U.S. and Canada at no cost. You’ll also need a softphone or SIP phone (NOT a regular POTS telephone) to actually place and receive calls. YATE makes a free softphone for PCs, Macs, and Linux machines so download your favorite and install it on your desktop. Phones connect to extensions to work with Incredible PBX. Extensions talk to trunks (like Google Voice) to make and receive calls. We use outbound routes to direct outgoing calls from extensions to trunks, and we use inbound routes to route incoming calls from trunks to extensions to make your phones ring. In a nutshell, that’s how a PBX works. There are lots of bells and whistles that you can explore down the road.

As configured after installation, you have everything you’ll need except a Google Voice trunk, and we’ll cover that next. Then we’ll add a softphone with your extension 701 credentials, and you’ll be ready to make and receive calls. Before we move on, let’s decipher your extension 701 password so that you’ll have it for later. Choose Applications -> Extensions -> 701 and scroll down the screen to the Secret field and write down your password. You can also change it if you like and click Submit and then the Red button to update your settings. While you’re here, write down your extension 701 Voicemail Password.

Deploying Google Voice on Your Server

That leaves one RED entry on your status display, GV OAUTH. Whether to use plain text passwords or OAUTH 2 credentials with Google Voice accounts presently is a matter of choice although Google regularly threatens to discontinue access to Google Voice without OAUTH authentication. We suggest you play with Google Voice using plain text passwords just to get your feet wet because OAUTH implementation gets complicated. When you get ready to deploy a permanent Incredible PBX server, that would be the appropriate time to switch to OAUTH. This tutorial (beginning at step 1b) will guide you through the process.

If you want to use Google Voice, you’ll need a dedicated Google Voice account to support Incredible PBX. If you want to use the inbound fax capabilities of Incredible Fax, then you’ll need an additional Google Voice line that can be routed to the FAX custom destination using the GUI. The more obscure the username (with some embedded numbers), the better off you will be. This will keep folks from bombarding you with unsolicited Gtalk chat messages, and who knows what nefarious scheme will be discovered using Google messaging six months from now. So keep this account a secret!

We’ve tested this extensively using an existing Gmail account, and inbound calling is just not reliable. The reason seems to be that Google always chooses Gmail chat as the inbound call destination if there are multiple registrations from the same IP address. So, be reasonable. Do it our way! Set up a dedicated Gmail and Google Voice account, and use it exclusively with Incredible PBX. It’s free at least through 2013. Google Voice no longer is by invitation only so, if you’re in the U.S. or have a friend that is, head over to the Google Voice site and register.

You must choose a telephone number (aka DID) for your new account, or Google Voice calling will not work… in either direction. Google used to permit outbound Gtalk calls using a fake CallerID, but that obviously led to abuse so it’s over! You also have to tie your Google Voice account to at least one working phone number as part of the initial setup process. Your cellphone number will work just fine. Don’t skip this step either. Just enter the provided 2-digit confirmation code when you tell Google to place the test call to the phone number you entered. Once the number is registered, you can disable it if you’d like in Settings, Voice Setting, Phones. But…

IMPORTANT: Be sure to enable the Google Chat option as one of your phone destinations in Settings, Voice Setting, Phones. That’s the destination we need for The Incredible PBX to work its magic! Otherwise, all inbound and outbound calls will fail. If you don’t see this option, you may need to call up Gmail and enable Google Chat there first. Then go back to the Google Voice Settings.

While you’re still in Google Voice Settings, click on the Calls tab. Make sure your settings match these:

  • Call ScreeningOFF
  • Call PresentationOFF
  • Caller ID (In)Display Caller’s Number
  • Caller ID (Out)Don’t Change Anything
  • Do Not DisturbOFF
  • Call Options (Enable Recording)OFF
  • Global Spam FilteringON

Click Save Changes once you adjust your settings. Under the Voicemail tab, plug in your email address so you get notified of new voicemails. Down the road, receipt of a Google Voice voicemail will be a big hint that something has come unglued on your PBX.

One final word of caution is in order regardless of your choice of providers: Do NOT use special characters in any provider passwords, or nothing will work!

Once you have your Google Voice account properly configured with Google, here is the proper sequence to get a Google Voice account working with Incredible PBX. First, using a browser, login to your Google Voice account. Second, make sure that Google Chat is activated in your Phone -> Settings. Third, in a separate browser tab, enable Less Secure Apps for your Google account. Fourth, in another separate browser tab, activate the Google Voice reset procedure. Fifth, in the Incredible PBX GUI, choose Connectivity -> Google Voice (Motif) and enter your Google Voice credentials:

Sixth, save your settings by clicking Submit and the Red Button to reload the GUI. Finally, using SSH or Putty, log into your server as root and restart Asterisk: amportal restart.

Setting Up a Soft Phone to Use with Incredible PBX

Now you’re ready to set up a telephone so that you can play with Incredible PBX. We recommend YateClient which is free. Download it from here. Run YateClient once you’ve installed it and enter the credentials for the 701 extension on Incredible PBX. You’ll need the IP address of your server plus your extension 701 password. Choose Settings -> Accounts and click the New button. Fill in the blanks using the IP address of your server, 701 for your account name, and your extension 701 password. Click OK.

Once you are registered to extension 701, close the Account window. Then click on YATE’s Telephony Tab and place some test calls to the numerous apps that are preconfigured on Incredible PBX. Dial a few of these to get started:


DEMO - Allison's IVR Demo
947 - Weather by ZIP Code
951 - Yahoo News
*61 - Time of Day
*68 - Wakeup Call
TODAY - Today in History

Now you’re ready to connect to the telephones in the rest of the world. If you live in the U.S., the easiest way (at least for now) is to use the free Google Voice account we set up above. Unlike traditional telephone service where you were 100% dependent upon MaBell, there is no such limitation with VoIP. The smarter long-term solution is to choose several SIP providers and set up redundant trunks for your incoming and outbound calls. The PIAF Forum includes dozens of recommendations to get you started. Here are a few of our favorites:

Originally published: Friday, January 29, 2016   Republished: Monday, March 14, 2016





Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

FCC and Asterisk Now Provide The Tools Needed to Put an End to Robocalls

One of the biggest jokes in the U.S. telecommunications industry has been the FCC’s Do Not Call List, a convenient source of working phone numbers for all the spammers on Planet Earth to use. Despite the threat of heavy fines, the FCC received 215,000 complaints in 2014 regarding unwanted robocalls and spam texts. In June, the FCC promulgated new rules clarifying that service providers could offer robocall-blocking technologies to consumers and implement market-based solutions that consumers could use to stop unwanted robocalls. Ten days ago, the FCC began publishing a weekly spreadsheet of 10-digit numbers associated with robocallers. And today we are pleased to do our part and provide a simple script which lets you deploy and periodically update the FCC’s RoboCall Blacklist on any Asterisk® 11 or 13 server platform.


Overview. Asterisk 11 and 13 already include a Blacklist feature to block unwanted callers. This functionality also has been integrated into the FreePBX® GUI for many years. Because of the size of the FCC RoboCall Blacklist, however, an indexed, robust database will be necessary to manage this on a busy PBX. With Asterisk 11 and 13, the integrated Asterisk Database now relies upon SQLite 3 with awesome performance. We need a simple way to distinguish FCC RoboCall Blacklist entries from other Blacklist entries that your PBX users have added either by phone using *30 and *32 or using the Blacklist feature in the GUI. In this way, the FCC entries can be replaced each week with a newer list while preserving any user-created Blacklist entries. There were several approaches to implementation discussed, and you can read all about them on the PIAF Forum. We’ve cherrypicked what we think are the best of all worlds employing a single script with some really elegant additions provided by Adam Goldberg and Dick Ollett. We have chosen a methodology that does not require Asterisk to be offline when the script is run so you can run it at any time. The script always makes a backup copy of the last FCC Blacklist just in case the FCC "improves things" and blows the current approach out of the water. You can recover by loading the previous week’s entries using the import-last-fcc-blacklist script. Only when you run the script the first time will you be asked to agree to the license agreement. After that you can incorporate the script into weekly cron jobs and forget about it.

WARNING: The FCC Blacklist now exceeds 200,000 numbers and is no longer recommended for Asterisk implementations!

Installation. Installing the software is easy. Log into your Asterisk server as root and issue the following commands:

cd /root
wget http://incrediblepbx.com/fcc-blacklist.tar.gz
tar zxvf fcc-blacklist.tar.gz
rm -f fcc-blacklist.tar.gz

Update: There’s good news. This software now works with XiVO! Tutorial here.

Operation. After installation, you’ll end up with a copy of the GPL2 license (COPYING) and 2 scripts: import-fcc-blacklist and import-last-fcc-blacklist (described above). Each week, simply run import-fcc-blacklist. After running it once, if you want to add it to /etc/crontab, here’s the command that will do it for you and spread the load on the FCC download site:

echo "$(($RANDOM%60)) $(($RANDOM%24)) * * $(($RANDOM%2 +6 )) root /root/import-fcc-blacklist > /dev/null" >> /etc/crontab

NOTE: For each FCC Blacklist entry that’s added, you’ll get an "Updated database successfully" message. Be patient. It takes about a minute to gobble all of them up. This week Asterisk shows there are 11.597 unique entries: database show blacklist

Redirecting Blacklisted Callers. Some may prefer to redirect blacklisted callers to a destination other than the default "the number is not in service" announcement. You can do this easily by installing the Lenny Blacklist Mod for FreePBX. Download the module from the link provided to your desktop. In the GUI, choose Admin -> Module Admin -> Upload Module. Choose the file you downloaded and click Upload from Hard Disk. Then enable the module and select the Lenny Blacklist Mod button from the GUI’s main status menu. You do NOT have to redirect callers to Lenny although that’s an option worth considering. A working version of Lenny is available at this SIP URI: SIP/2233435945@sip2sip.info

Blocking Anonymous Callers. By default, both scripts block anonymous callers by adding them to your Asterisk Blacklist. If you want to disable this feature, comment out line 37 in both of the scripts before running them.

Another View. Fred Posner’s blog has proffered a different view on the FCC RoboCall BlackList, and it’s something you should consider. We have responded to his article with a few comments that seek to lay out the factors everyone should individually evaluate before implementing anyone else’s blacklist. We also are sympathetic with Fred’s observation that the FCC should take proactive steps to notify affected violators that their number has been placed on the blacklist and provide an opportunity to respond. That’s nothing Allison + Asterisk couldn’t handle with ease. We’d be happy to donate the IVR code.


[soundcloud url="https://api.soundcloud.com/tracks/231404538″ params="auto_play=false&hide_related=false&show_comments=true&show_user=true&show_reposts=false&visual=true" width="450″ height="340″ iframe="true" /]

Other Helpful Hints. For other tips on getting the most out of this new software, we have a section on the PIAF Forum just for you. It addresses issues such as how to implement a BlackList with providers that deliver calls with 11 digits or that deliver NANPA calls with a +1 prefix. HINT: For providers such as CallCentric and Anveo that deliver calls in these formats, use context=from-pstn-e164-us. Come join the discussion. Enjoy!

11/11 Update. We’re now into the third iteration of the FCC RoboCall Blacklist, and there still appear to be a few problematic entries. For example, the main FedEx Customer Service number (800-Go-FedEx) remains in the blacklist.

To check whether a number is in the list, use this command:

asterisk -rx "database show blacklist/8004633339"

To manually delete an unwanted entry from the list after a database update:

asterisk -rx "database deltree blacklist 8004633339"

Originally published: Monday, November 2, 2015



Don’t forget to List Yourself in Directory Assistance so everyone can find you by dialing 411. And add your numbers to the Do Not Call Registry. Or just call 888-382-1222 from your new number.






Need help with Asterisk? Come join the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

Sleep Well: Deploy Certified Incredible PBX Builds for Mission Critical Systems

2015 marks the year we finally settled upon an Asterisk® platform that was not only feature rich but also easy to deploy and maintain. Incredible PBX™ began as an add-on feature set for PBX in a Flash™. But we really wanted a pure open source platform that was built from the ground up. So we introduced a number of stand-alone installers that could be deployed using existing Linux platforms: CentOS, Ubuntu, Debian, Raspbian, and even FreePBX® Distro’s SHMZ. These continue to be our "best sellers" even though we give them away. With the exception of SHMZ, the beauty of the other stand-alone installers is you can use them anywhere whether it’s a Raspberry Pi® or in the Cloud1 with RentPBX or Digital Ocean. But there were some that preferred either dedicated hardware or in-house virtual machine platforms such as VirtualBox and Proxmox. For these platforms, a two-step OS and Incredible PBX install procedure was a hassle. So we introduced an ISO build of Incredible PBX with a superset of Scientific Linux 6.7 preconfigured. And finally we added snapshot images for VirtualBox and Proxmox. What used to take hours has been reduced to less than 30 seconds on the Proxmox 4 KVM platform. With Incredible PBX, it’s all about choice and the FREEDOM to choose with NoGotchas!

Along the way, we experimented with a number of other hardware platforms, and we even tried several other management GUI’s for Asterisk. But there comes a time when you have to sharpen your focus and produce a product that is something other than experimental. And that’s why we are pleased to introduce the new Certified Incredible PBX Builds. These are robust unified communications solutions that we not only test regularly but also use ourselves. Yes, we eat our own dog food.

So where do you begin? We documented a simple, 3-Step Decision Tree to guide you through the process of choosing a GPL platform and VoIP communications solution that’s right for you. You can take it for a spin here or read the complete tutorial.

The more difficult question is deciding how to host your Unified Communications server. Do you want to maintain it yourself, or do you prefer that someone else maintain either the hardware or software or both? We can’t really answer that for you without a great deal of additional information. What we can tell you is that experimentation is a wonderful thing, and you’ll learn an awful lot in the process. Take advantage of the PIAF Forum. There are hundreds of VoIP experts and 10,000+ members to help with your new adventure. Building systems with Incredible PBX is a process that, in the worst case, takes under an hour. And, in the best case, it takes under 30 seconds. So our advice is try several Cloud approaches and, if you have some old hardware lying around the house, try that option as well. We would hasten to add that we don’t recommend running your phone system on old hardware permanently. If you choose the stand-alone server route, invest $200 and get our recommended Intel® NUC or invest $100 and put a Raspberry Pi 2 platform into production. Both are easy to back up and restore. If you’re a dedicated iMac user with processing power and RAM to spare, then the VirtualBox solution really is a no-brainer. It doesn’t cost you a dime, and you’ll never know your phone system is operating as a virtual machine.

The Incredible PBX Gold Standard

We get emails all the time that go something like this. "Cut the crap. You’re the expert. Just tell me the platform that you use and would recommend." Fair enough. Here you go. We experiment on Cloud-based servers almost daily. We have a virtual machine at RentPBX that has run non-stop for years without a hiccup. Use our $15/month coupon code if you sign up: NOGOTCHAS. We build and tear down systems at Digital Ocean and CloudAtCost and Wable almost daily. These three have the added advantage of letting you take snapshots of your virtual machines. Snapshots can be restored in minutes. While CloudAtCost is a good sandbox, don’t even think about using it in production!

The system we recommend for SOHO and small businesses is $200 dedicated hardware, an Intel NUC. The software is Incredible PBX 13 ISO. The server is powerful, quiet, tiny, and easy to back up using Clonezilla and an external USB drive. Our production machine doesn’t change much for months at a time. Once configured, yours probably won’t either. Don’t go update crazy! Apply updates and upgrades only when something doesn’t work or you need a new feature. If it ain’t broke…

A Few Words About Incredible PBX Applications for Asterisk

Asterisk is a complex telephony platform. Don’t expect to learn it all in a day. We’ve been at it for 10 years, and there’s still much that we don’t know. On top of Asterisk, we’ve added over three dozen Asterisk applications. And, yes, there is documentation. Spend a little time with the tutorial, and it will improve your appreciation for Asterisk 1000%.

A Few Words About Google Voice OAUTH Authentication

We have been a strong proponent of Google Voice for many years. Why? Because in the United States, you can make limitless calls to the U.S. and Canada for free. Faxes work, too. Just don’t put all of your eggs in the Google Voice basket. It does break, and Google regularly "improves" things. Thus far, we’ve always managed to get things going again thanks to some very talented telephony gurus around the globe. The one component of Google Voice that Google continues to threaten to shut down is the use of plain text passwords for authentication. With Incredible PBX, you can do something about that by implementing OAUTH authentication on your server. We’ve written a simple tutorial to guide you through implementation and use of OAUTH 2.0 with Google Voice. Please read it before your Google Voice trunks suddenly drop dead.

A Few Words About Security and Firewalls

If you have a phone system that is exposed to the Internet, the bad guys are going to attempt to make calls on your nickel forever. No firewall means sooner or later you’re going to get hit with a very expensive phone bill. Some of the horror stories include charges of over $100,000 in a single month.

Incredible PBX includes a sophisticated firewall that is locked down to private networks, preferred (by us) VoIP providers, and the IP addresses of your desktop computer and your server. Don’t disable it!

We do not recommend using Incredible PBX on the Amazon EC2 platform for the simple reason that Amazon treats all customers as part of the same private LAN. This defeats the security provided by the Incredible PBX firewall and leaves your extension and trunk passwords as your only line of defense. Yes, there are bad guys using Amazon. You’ve been warned.

If you opt to host your own dedicated server for Incredible PBX, we strongly recommend that you place the server behind a hardware-based firewall in addition to the IPtables firewall provided as part of every Incredible PBX build. Two firewalls are almost always better than one. It’s one more nut to crack for the bad guys.

Finally, a word about the new FreePBX Firewall. Don’t. Good network practices suggest that a firewall should be as separated from your applications as possible. The IPtables firewall used by Incredible PBX is only accessible through SSH or the console with root login. It also requires root permissions for any type of modification to its setup. The FreePBX firewall is an integral component of FreePBX and is accessible through the FreePBX GUI itself using the standard FreePBX admin credentials. In addition, during the first week, a vulnerability was reported which resulted in a root vulnerability. What’s puzzling about that is the fact that FreePBX itself traditionally has not operated with root permissions which suggests that other changes have been made in the GUI so that the user account separation between the asterisk user account and the root user account has now been compromised, a very dangerous new development. If this is ever explained, we will pass it on.


https://twitter.com/0x00string/status/655513518578339841

A Few Words About Module Repositories

FreePBX 12 GPL modules are an integral component of Incredible PBX. Why don’t we use "pure" FreePBX 12? The short answer is Sangoma® has integrated a hidden module repository into FreePBX 12. It is comprised of modified FreePBX 12 modules that are not provided on any publicly-accessible web site. Yes, FreePBX 12 GPL modules are available through their GIT repository, but these modules differ from the ones that actually make FreePBX 12 work properly (see next section). As a result, we have chosen to build and use a public module repository for FreePBX 12 GPL modules included in Incredible PBX. For further details, see this Nerd Vittles article. To access our public repository of FreePBX 12 GPL modules, go here.

A Few Words About Module Signatures

With FreePBX 12, Sangoma also has chosen to bar use of competitor’s commercial modules within the product. In addition, Sangoma has implemented a module signature scheme which results in nasty security alerts whenever a compatible FreePBX module is included in the GUI that was not produced or approved for inclusion by Sangoma giving the impression that your server has been compromised. As a result, we have chosen to disable module signature checking by default with Incredible PBX. As changes are made within the GUI, the nasty warnings reappear. We have included the gui-fix script to again disable signature checking. A permanent fix which eliminates signature checking permanently is available here.

A Few Words About Asterisk Upgrades

When you install Incredible PBX, you automatically get the latest and greatest version of Asterisk. Depending upon the installer used, you get either Asterisk 11 or 13. Both versions of Asterisk get regular upgrades provided by Digium®. As with updates, our recommendation is to not apply upgrades unless you actually need a new feature or your existing server is experiencing problems related to the version of Asterisk you are running. We have provided an upgrade utility to make the upgrade process painless. It will NOT move you from Asterisk 11 to 13. It only moves you to the latest release in the version of Asterisk you already have installed.2 In the case of Asterisk 13, the upgrade utility will preserve Google Voice OAUTH authentication if you have previously applied the Asterisk 13 patch as documented above. To upgrade your server, log in as root and issue the following commands:

cd /root
wget http://incrediblepbx.com/upgrade-asterisk-to-current.tar.gz
tar zxvf upgrade-asterisk-to-current.tar.gz
rm -f upgrade-asterisk-to-current.tar.gz
./upgrade-asterisk-to-current

A Few Words About Backups

There are two kinds of administrators in the world: those that make regular backups and those that don’t. Only the first category of administrators generally keep their jobs. Whether you do this for a living or for fun, you are strongly encouraged to make regular backups of your server. There are two types of backups: full system backups and incremental backups using the incrediblebackup script. You need both. For dedicated servers, we recommend you obtain the free Clonezilla application for full system backups. Used in conjunction with an external USB drive, it provides excellent results. For those using Incredible PBX in a virtualized environment, we recommend you use the snapshot utility included on your platform to make periodic backups. Backups should always be stored in a location separate from that of your server or virtual machine.

Originally published: Monday, October 26, 2015


Support Issues. With any application as sophisticated as this one, you’re bound to have questions. Blog comments are a terrible place to handle support issues although we welcome general comments about our articles and software. If you have particular support issues, we encourage you to get actively involved in the PBX in a Flash Forums. It’s the best Asterisk tech support site in the business, and it’s all free! Please have a look and post your support questions there. Unlike some forums, ours is extremely friendly and is supported by literally hundreds of Asterisk gurus and thousands of users just like you. You won’t have to wait long for an answer to your question.



Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

  1. Some of our links refer users to service providers when we find their prices are competitive for the recommended products. Nerd Vittles receives a small referral fee or advertising revenue from some of these providers to help cover the costs of our blog. We never recommend particular products solely to generate commissions. However, when pricing is comparable or availability is favorable, we support these providers because they support us. []
  2. Some of the FreePBX Distro cheerleaders have touted the beauty of their NagWare noting that you can move back and forth between Asterisk 11 and 13. The question is why would anyone ever want to move back to Asterisk 11 after migrating to Asterisk 13. So we’re talking about a one-time reinstall followed by a restore using Incredible Backup and Restore from your Asterisk 11 server. Can you say lunch break? []

Introducing the FUD-Free Firewall for FreePBX Distro and AsteriskNOW

After frequent complaints from our FreePBX® users, we introduced a firewall application for the PBX in a Flash™ and Incredible PBX™ platforms that protected FreePBX resources. That was over 5 years ago. The product became Travelin’ Man™ 3, an IPtables-based WhiteList that totally eliminated access to your Asterisk® server unless a WhiteList entry had been authorized by the administrator. The application was further embellished over the years to facilitate access by remote users. First, we introduced PortKnocker™ for Asterisk® and later we introduced Travelin’ Man 4 to let users call in with a passcode to authorize server access. For the past several years, a preconfigured firewall has been an integral component in what has become the 7-Layer Security Model included in all Incredible PBX builds. TIP: Security is not a new idea for us.

During this evolution, the FreePBX developers introduced their own distribution, the FreePBX Distro™. Conspicuously absent was a functioning firewall. We believed that the shortcoming would be remedied quickly. Hasn’t happened! In the meantime, a number of serious security vulnerabilities arose in the FreePBX product that compromised numerous servers running their distribution because of the absence of a functioning firewall. Digium® recently reintroduced AsteriskNOW™ as a clone of the FreePBX Distro. But still no firewall.

About a month ago, we decided to close the loophole for everyone’s security and develop a firewall for the only FreePBX-based distributions without a firewall, the FreePBX Distro and AsteriskNOW. Last week we began the rollout with a Nerd Vittles article explaining why this was essential, as if an explanation were necessary. Today, you get the GPL code.

Suffice it to say, our article was not well received. The usual Sangoma® players went into Damage Control Mode with what has become a predictable scenario whenever security issues are raised concerning the FreePBX design or vulnerabilities.

Meet The Sangoma 7.

  • The Good Cop: If only you’d purchase Genuine Sangoma Hardware, all of your security problems would disappear
  • The Bad Cop: Enjoy this nice Cup of FUD about your own distro which proves we’re all just alike
  • The Techie Cop: We thought of developing an open source firewall just the other day, and now you’re complaining
  • The Rest of "The Team": Let the Astroturfing Begin… Retweet, favorite, and cheer for the brilliance of My 3 Cops

The Good Cop offered to solve all your security woes if you’d just buy (some more Sangoma) hardware.

The Bad Cop suggested that, with "cookie cutter security, you might as well hand out your password." Just in case you have any doubts about whose approach has stood the test of time, let’s Google the FreePBX Security Vulnerability Track Record.

The Techie Cop claimed we had stolen his 2-day old idea to create an Open Source Firewall. Really?
Earth to Techie Cop: Where have you been for the past five years??

Funny stuff… if it weren’t so damaging to the Asterisk community and those trying to decide whether to put their faith in open source communications software.

Firewall Basics.

We’ve written dozens of articles on Asterisk security and firewall approaches so we won’t repeat all of the information. Here’s what you need to know. Software-based firewalls on Linux servers need to be integrated into the Linux kernel to be secure. IPtables is kernel-based and extremely reliable. Blacklist-based firewall designs, i.e. those that seek to identify the IP addresses of every bad guy on the planet don’t work very well. Bad guys aren’t stupid. They can do their damage by commandeering a little old lady’s Windows machine so you’re never going to collect all of the necessary "bad" IP addresses. They’re also smart enough to poison the blacklists with Internet resources you need such as DNS servers. So don’t waste your time with blacklists. WhiteLists work very well. You identify the IP addresses and FQDNs of all the Internet sites you need to support and all the SIP providers you wish to use. Nobody else even sees your server on the Internet. If the bad guys can’t see your server, they can’t attack it. Simple as that.

Travelin’ Man 3 WhiteList Tutorial.

Here are the fundamentals of the Travelin’ Man 3 design. We allow access from anybody and everybody on your private LAN. They still need a password to access FreePBX or to gain root access, but they can "see" your server. Private LAN addresses are non-routable over the Internet which means the bad guys can’t access your 192.168.0.4 IP address if you’re sitting behind a NAT-based hardware firewall. All of your internal phones will work with no firewall modifications. You may need to adjust these settings if you’re using a Cloud resource such as Amazon because they actually route non-routable IP addresses which would leave your server vulnerable without removing these entries (especially the 172 subnet for Amazon):

#-A INPUT -s 10.0.0.0/8 -j ACCEPT
#-A INPUT -s 172.16.0.0/12 -j ACCEPT
#-A INPUT -s 192.168.0.0/16 -j ACCEPT

Travelin’ Man 3 also authorizes access for certain mandatory services that are needed to keep your server operating properly. In addition, during installation, Travelin’ Man 3 whitelists localhost and the public and private IP addresses of your server as well as your PC or workstation. You obviously don’t want to lock yourself out of your own server.

As of today, Travelin’ Man 3 is primarily an IPv4 whitelist toolkit. IPv6 addresses are only supported to allow localhost access to your server. Any other IPv6 addresses must be added manually in /etc/sysconfig/ip6tables. We recommend not using FQDNs with IPv6 for the time being. And always restart IP6tables after adding new entries: service ip6tables restart.

You have the option of enabling the Incredible PBX collection of IP addresses used by many of the leading SIP providers around the world. Just run the enable-trusted-providers script in /root. The list of included providers is available here. You also have the option of adding (whitelisting) or deleting users’ and providers’ IP addresses and FQDNs yourself. Use the included scripts in the /root folder: add-ip, add-fqdn, and del-acct. For each account you set up, you get to define which access permission or combination of permissions will be available:

0 – ALL Services
1 – SIP (UDP)
2 – SIP (TCP)
3 – IAX
4 – Web
5 – WebMin
6 – FTP
7 – TFTP
8 – SSH
9 – FOP

Once you have made your selection, a user account will be created in /root with the name of the account and an extension of .iptables. Do NOT delete these files. They keep track of current IP addresses and accounts authorized for server access.

If you have remote users on the Internet, e.g. traveling salespeople, you can individually authorize access for them using a dynamic FQDN (add-fqdn) coupled with a dynamic DNS server that keeps IP addresses current as folks move around. Just load a dynamic DNS updater on their smartphone. Then plug the user entries into the included ipchecker script and execute a cron job on your server every few minutes to keep the FQDN entries refreshed. Simple.

echo "*/10 * * * * root /root/ipchecker > /dev/null 2>&1" >> /etc/crontab

IPtables does not directly support FQDN rules through the kernel. However, IPtables lets you configure your firewall rules using FQDNs which get translated into IP addresses whenever IPtables is restarted. The gotcha here is that, if an FQDN is not resolvable, IPtables fails to load, and you’re left with a vulnerable server. Travelin’ Man 3 takes care of this by employing a special restart script that temporarily disables unresolvable IP addresses.

The moral of the story:

ALWAYS USE iptables-restart TO RELOAD IPTABLES OR YOUR SERVER MAY END UP WITH NO FIREWALL!

We’ve also included support for a neat little trick that lets you whitelist remote SIP access to your server using a special FQDN. No further firewall adjustments are necessary. This is supported on most platforms except OpenVZ containers. The way this works is you first assign an obscure FQDN to your server’s IP address. It needs to be obscure because anyone with the FQDN gains SIP access to your server. But chances are pretty good that the bad guys will have a hard time figuring out that xq356jq.dyndns.org points to your server. You then can embed this FQDN in the SIP phone credentials for all of your remote users. The final step is to uncomment the last few lines in /etc/sysconfig/iptables after plugging in your obscure FQDN. Then restart IPtables: iptables-restart.

-A INPUT -p udp --dport 5060:5061 -m string --string "REGISTER sip:xq356jq.dyndns.org" --algo bm -j ACCEPT
-A INPUT -p udp --dport 5060:5061 -m string --string "REGISTER sip:" --algo bm -j DROP
-A INPUT -p udp --dport 5060:5061 -m string --string "OPTIONS sip:" --algo bm -j DROP

Finally, a word of caution about deploying Travelin’ Man 3 on the FreePBX Distro and AsteriskNOW platforms. We currently don’t have a vehicle in place to push security updates out to you as we do with Incredible PBX. This means you will have to remain vigilant to what’s happening in the telecommunications world and load updates yourself. You can stay current in a number of ways. We will post updates to this article in comments below so you can simply check back here periodically. An easier way to keep up with the latest security alerts and updates is to subscribe to the PBX in a Flash RSS Feed. This can be added to the FreePBX Status page by editing RSS Feeds in Settings -> Advanced Settings and adding:

http://pbxinaflash.com/rssfeed.xml

As you can see, there’s nothing "cookie cutter" about Travelin’ Man 3. It’s totally customizable to meet your own unique requirements. All we have done is tame IPtables and eliminate much of its complexity so that you can get a functional firewall up and running quickly. Now it’s deployment time!

Installing Travelin’ Man 3 for the FreePBX Distro & AsteriskNOW.

Log into your server as root from a desktop PC using SSH or Putty. This assures that you will have access from a device other than the console when you are finished. Then issue the following commands:

cd /root
wget http://incrediblepbx.com/tm3-firewall.tar.gz
tar zxvf tm3-firewall.tar.gz
./enable-iptables-whitelist

If you wish to enable the Incredible PBX trusted providers whitelist, issue the following command:

./enable-trusted-providers

ALWAYS use the following command to start or restart IPtables:

iptables-restart

NEVER use the following syntax with Travelin’ Man 3:

service iptables...

CHECK the status of your server at any time:

/root/status

The GPL Is NOT Dead: Coming Soon to FreePBX Distro and AsteriskNOW…

Stay tuned for Incredible PBX GUI, all of the GPL modules you know and love with NO NAGWARE and NO GOTCHAS. This also will assist users that got duped by the Sangoma offer to convert PBX in a Flash into a proprietary FreePBX Distro. After reading the Sangoma disclaimer about the script being donated by an anonymous user, ask yourself this question. When was the last time Sangoma republished code that they did not own or create themselves? Try NEVER.

BEFORE:

AFTER:

Originally published: Monday, August 10, 2015



Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

Firewalls 101: Why Every Asterisk Server Should Have a Functioning Firewall


Part of our fundamental disagreement with the FreePBX® design can be summed up in one word: FIREWALL or the lack of a functioning firewall in the FreePBX Distro and in the functionally identical Digium product, AsteriskNOW®.1 Most of the other design choices including the controversial, non-GPL compliant Module Signature Checking mechanism are touted as failsafe ways to detect altered systems even though changes in FreePBX MySQL tables and Asterisk config files can be modified easily without triggering alerts. In short, the Band-Aid® approach to module tampering does nothing to address the fundamental problem, prevention of unauthorized intrusions in the first place.

Some would contend that the included Fail2Ban product is specifically designed to prevent unauthorized intrusions by locking out the bad guys after a certain number of failed login attempts. Assuming Fail2Ban were functioning properly, which does not appear to be the case, putting all your eggs in the Fail2Ban basket also ignores several critical shortcomings in Fail2Ban. First, it has been documented that powerful servers such as Amazon EC2 and Twitter botnets give hackers almost unlimited intrusion attempts before Fail2Ban ever gets a time slice sufficient to scan logs for intrusion attempts. Second, Fail2Ban provides no protection against stealthy distributed bruteforcing activity. For example, if a botnet with 770,000 PCs attacked your server and each PC executed only two login attempts, Fail2Ban never gets triggered even assuming your server could handle the load and Fail2Ban got sufficient server resources to actually scan your logs. Finally, Fail2Ban provides no protection against Zero Day vulnerabilities where an intruder basically walks right into your server because of an unidentified vulnerability lurking in the existing code. Unfortunately, these are not hypothetical situations but regular occurrences over the past 10 years of Asterisk and FreePBX development. In a nutshell, that’s why you need a real firewall. It completely blocks all access to your server by unauthorized users all of the time.

Numerous companies have intentionally exposed Asterisk® servers to the public Internet in a continuing effort to identify problems before they affect "real servers." We know of no similar efforts with a platform that includes FreePBX as an integral component of the server. Why? Because the potential for Zero Day Vulnerabilities in a platform of modular design is enormous. One vulnerable component in FreePBX and the entire house of cards collapses because of the blank check server access that a compromised FreePBX asterisk user account gives to an intruder. It’s the fundamental reason that services such as Apache were engineered to run with different user credentials than a root user in the real world. In essence, the current FreePBX design with Asterisk has elevated asterisk user credentials to allow root-like access to almost every server file and function with the exception of SSH access. And SSH access becomes all but unnecessary given the scope of the GUI functionality provided within FreePBX and the escalated privileges it enjoys.

On FreePBX-based Asterisk servers, the absence of any user account separation means Asterisk, Apache, and FreePBX services all operate under the single asterisk user account. If any piece collapses due to a vulnerability, the intruder gets the keys to the castle including read/write access to Asterisk and FreePBX manager credentials and config files as well as broad MySQL access. This, in turn, exposes your VoIP account credentials in addition to facilitating SQL injection into any and all FreePBX database tables. Because FreePBX "hides" numerous settings in over a hundred MySQL tables, the Asterisk DB, and dozens of Asterisk config files, once the asterisk user account access is compromised, many of the major components on your server could be cleverly reconfigured without leaving much of a hint that your server had been compromised. In fact, VoIP account credentials could be extracted and used elsewhere with no traceable footprint back to your server. For all you would know, your provider compromised your credentials rather than the other way around. Just another reminder that keeping a credit card on file for automatic replenishment with VoIP providers is a very bad idea!

Providing the asterisk user with these broad permissions was a (poor) design choice. Why was it done? To make it easy for the developers to alter virtually everything on your Asterisk server using FreePBX’s integrated Module Admin component. Root user permissions are never required to do much of anything other than server platform upgrades once the FreePBX Distro or AsteriskNOW product is installed. That’s exactly the design one would expect to find in a commercial, closed source software platform. But it’s unusual in the open source community to put it charitably. We trust we’ve made the case why a rock-solid firewall with any product that uses FreePBX modules is absolutely essential. FreePBX is a wonderful GUI, but use of the platform without a properly configured, fully functional firewall could be financially catastrophic not to mention the serious damage it could cause to others including the good reputation of Asterisk in the Internet community.

Our objective next week will be to help you implement a functioning Linux-based software firewall on the FreePBX Distro and AsteriskNOW platforms. It’s FREE! Not only will this improve the security of your server, but it will deny the bad guys a platform from which to launch mischievous acts against the rest of us. Unless you’re running Asterisk on a Cloud-based platform, do all of us a favor NOW! Run, don’t walk, to your nearest electronics store (including WalMart and BestBuy) and purchase one of the dozens of inexpensive NAT-based routers. Install it between the Internet and your server TODAY! This is the one we use, but there are plenty from which to choose including our refurbished one.2


NEWS FLASH:
Download the new FUD-Free Firewall for FreePBX Distro and AsteriskNOW.

Originally published: Monday, August 3, 2015



Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

  1. Technically, IPtables is running on the FreePBX Distro and AsteriskNOW platforms; however, it’s sole function is to act as the shutdown mechanism for Fail2Ban-detected breaches. It does not independently examine packets. There is no functioning iptables config file. From our vantage point, serving as the Fail2Ban traffic cop doesn’t qualify as a functioning firewall since it lacks any of the traditional IPtables rules that manage PREROUTING, INPUT, FORWARD, OUTPUT, and POSTROUTING of packets. []
  2. Where prices are competitive or availability is a factor, we often recommend Amazon because Amazon provides financial support to Nerd Vittles through our referral links. We encourage everyone to shop independently and purchase products from suppliers that best meet your own requirements. []

Top 3 Asterisk Security Tips for 2014: WhiteLists, WhiteLists, and WhiteLists

We’ve devoted a lot of energy to Asterisk security over the years with our Primer on Avoiding the $100,000 Phone Bill and our 20 Failsafe Tips and our SIP Navigation Guide plus numerous tutorials on deployment of Virtual Private Networks to secure your servers and phones including NeoRouter, PPTP, and Easy OpenVPN among others. But, when it comes to ease of installation and use with rock-solid security, nothing comes close to deployment of WhiteLists with the IPtables Linux firewall that’s included at no cost with every major Linux distribution and with all of the Asterisk® aggregations including PBX in a Flash™ and Incredible PBX™. So we’re kicking off the summer with a careful look at the methodology behind IPtables and the Travelin’ Man™ tools developed to reduce the learning curve for new users.

Security, of course, is all about the "bundle of sticks." As we learned from Aesop’s Fables, the more sticks you bundle together, the more difficult it is to break the stick. We are by no means advocating that you drop all of the other tools at your disposal to improve the security of your Asterisk security. So, before we dive into WhiteLists, let’s spend a little time covering some of the other tools that are available and why those tools should not be relied upon exclusively.

1. Hardware-based Firewall. The PBX in a Flash project has cautioned users for years not to run Asterisk-based servers connected to the Internet without a hardware-based firewall between your server and the public Internet. Is it failsafe? No. Some hardware-based firewalls have been compromised either by the bad guys or by the NSA. Pardon the redundancy. The other problem with hardware-based firewalls is that they’re generally not available with cloud-based solutions. As the price of cloud computing has dropped and the cost and headaches of maintaining your own hardware has increased, more and more folks are considering cloud-based alternatives. Yes. Hardware-based firewalls should be deployed whenever possible. No. They won’t resolve all security concerns.

2. Fail2Ban. Once upon a time, a number of us thought that Fail2Ban was the answer to all security issues with Asterisk-based servers. In a nutshell, Fail2Ban scans your logs searching for failed attempts to log in to either SSH, FTP, Apache, SIP, or an email account. After a small number of failed attempts, Fail2Ban blocks further access from the IP address initiating the requests. There are two problems with Fail2Ban. First, software developers of the affected services continue to "improve" things with new and different error messages when login failures occur. Since Fail2Ban is searching for specific word matches to identify unsuccessful logins, the whole security mechanism fails when the "magic words" change unless everyone is extremely vigilant in maintaining the "magic word" lists AND updating the Fail2Ban rules on all of your servers. Our experience suggests that the bad guys find the new "magic words" long before everyone else which means there are gaping holes in Fail2Ban regularly. The other problem is supercomputers such as Amazon EC2 which makes enormous computing resources available to every Tom, Dick, and Harry. We’re mostly worried about the Dick that can hammer your little server every second with hundreds of thousands of attempts to crack your SIP or SSH passwords. The problem this poses is that most Linux servers never allocate a sufficient time slice to Fail2Ban to scan your Asterisk, Apache, and SendMail logs. Instead of blocking a bad guy after 3 failed login attempts, a bad guy using EC2 may be able to perform several hundred thousand login attempts before Fail2Ban ever detects a problem. Yes. Fail2Ban helps against the bad guy manually keying in passwords. No. Fail2Ban is all but worthless against a sophisticated denial of service attack on your server.

3. Virtual Private Networks. The beauty of virtual private networks (VPNs) is that all of your Internet traffic is encrypted and tunneled through private IP addresses that others can’t intercept. That was the theory until Edward Snowden came along and spoiled the NSA’s party. Yes. We’ve known that PPTP VPNs were vulnerable for a good long while. No. We didn’t know that the NSA (and presumably others) may have had the keys to your castle much longer… regardless of the VPN topology you may be using. The other problem with VPNs is that you need VPN connections for every device connecting to your server. Unfortunately, VPN technology is only available on a small number of SIP telephones, and the supported OpenVPN topology is one of the more difficult VPNs to deploy on a Linux server. Are VPNs better than nothing? Absolutely. Does a VPN provide failsafe communications security over the open Internet? Probably not.

4. Nothing Beats Secure Passwords. Amen. There was a time when some Asterisk-based servers were routinely set up with extension passwords of 1234 or the extension number itself. And outbound SIP trunks were deployed with no dialing rules. And administrators opened accounts with SIP providers with automatic credit card replenishment whenever the accounts ran out of money to cover calls. And no safeguards were put in place to restrict international calling. Little did these folks know that registering to a SIP extension on an Asterisk server provided a blank check for making unlimited calls to anywhere on the planet. Thus was born the $100,000 phone bill. Yes. Nothing Beats Secure Passwords for root, for SIP accounts, and for SIP and IAX trunks connected to commercial providers. But you also need to implement dialing rules for outbound calls that allow your callers to reach only the destinations desired, not the world. And your accounts with providers should always include limits and restrictions on international calls and should never include automatic credit card replenishment.

5. BlackLists. There was a time when blacklisting IP addresses was believed to be the ultimate solution to Internet security problems. Sounds great, doesn’t it? Just set up a database with the IP addresses of all the bad guys in the world, and all our problems will be solved. Problem #1: A new bad guy is born every minute. Problem #2: The bad guys learned how to use VPNs and other random IP address masquerading sites to disguise their true identity. Problem #3: Security vulnerabilities in many Windows-based machines allowed the bad guys to take control of these computers and do their dirty work from there. Problem #4: There are actually some good guys that live in Russia and China. Problem #5: The bad guys learned to poison the "bad guy list" to block essential services such as DNS, Google, Amazon, Netflix, Pandora, and your favorite bank and credit card companies. Yes. The theory of blacklists sounded great. No. Blacklists not only don’t work. They’re downright dangerous.

WhiteLists with IPtables: The Knight in Shining Armor

For the past few years, our Internet security focus has turned toward defining a methodology that works with all PBX in a Flash and Incredible PBX servers, whether they’re dedicated servers behind a hardware-based firewall or public on a cloud-based shared host. And the conclusion we’ve reached is that nothing beats the IPtables Linux firewall for rock-solid Internet security. The reason is its deep integration into the Linux kernel itself through Netfilter, "a set of hooks inside the Linux kernel that allows kernel modules to register callback functions with the network stack." Wikipedia provides an excellent overview for those with an interest. For our purposes, suffice it to say that IPtables examines inbound and outbound packets before any further processing occurs on your server. With our default setup, we typically allow all outbound traffic from your server. For inbound traffic, if the iptables rules permit access, the packet comes in for processing. If not, the packet dies at the door with no acknowledgement that it was even received. In laymen’s terms, if someone attempts to scan your server to determine whether web or SIP services are available, there will be no response at all unless packets from the scanning server’s IP address are permitted in the iptables rules configured on your server. You can determine which rules are in force with this command: iptables -nL.

The basic configuration and syntax of iptables rules can be daunting to those unfamiliar with the territory. And thus was born Travelin’ Man 3, our open source tool to simplify configuration of IPtables by allowing administrators to define WhiteList entries describing the types of services that were allowed access to a server from specified external IP addresses. The basic rules of the Travelin’ Man 3 setup for iptables are these: (1) outbound packets are unrestricted, (2) forwarded, established, and related packets are permitted, (3) inbound packets from the private LAN are unrestricted, but (4) inbound packets from the public Internet are dropped unless permitted by a specific iptables rule. Those rules include certain basic services such as time synchronization (TCP 123) as well as WhiteListed IP address entries for specific or generic services.

Installation is easy. Log into your PBX in a Flash as root and issue the following commands. NOTE: Travelin’ Man 3 is optionally available as part of Incredible PBX installs on the CentOS, Scientific Linux, and PIAF OS platforms. It is preinstalled on the Raspberry Pi and BeagleBone Black platforms with RasPBX. You can determine if it’s already installed on your server with this command: ls /root/secure-iptables. If the script exists, you’ve already got Travelin’ Man installed, but it may not be running so keep reading…

cd /root
wget http://incrediblepbx.com/travelinman3.tar.gz
tar zxvf travelinman3.tar.gz
yum -y install bind-utils
./secure-iptables

Because PBX in a Flash and Incredible PBX servers are primarily designed to support telephony, Travelin’ Man 3 further simplifies the iptables setup by whitelisting the IP addresses of a number of the leading VoIP providers. These include Vitelity (outbound1.vitelity.net and inbound1.vitelity.net), Google Voice (talk.google.com), VoIP.ms (city.voip.ms), DIDforsale (209.216.2.211), CallCentric (callcentric.com), and also VoIPStreet.com (chi-out.voipstreet.com plus chi-in.voipstreet.com), Les.net (did.voip.les.net), Future-Nine, AxVoice (magnum.axvoice.com), SIP2SIP (proxy.sipthor.net), VoIPMyWay (sip.voipwelcome.com), Obivoice/Vestalink (sms.intelafone.com), Teliax, and IPkall. For the complete list: cat /etc/sysconfig/iptables (CentOS) or cat /etc/network/iptables (RasPBX).

The real beauty of Travelin’ Man 3 is you aren’t limited to our WhiteList. You can add your own entries easily using the TM3 scripts that are included in the /root directory. secure-iptables initializes your iptables setup and also lets you define a primary IP address or fully-qualified domain name (FQDN) that will always have access to your server. You must run this script at least once to activate IPtables on all platforms!

Once you have run secure-iptables, you can whitelist additional IP addresses by running add-ip. You can whitelist additional FQDNs by running add-fqdn. You can delete either IP addresses or FQDNs by running del-acct. As noted previously, you can check what’s authorized with the command: iptables -nL.

We’ve also included a custom script to restart IPtables gracefully: iptables-restart. The reason is because using the traditional restarting mechanism in IPtables will leave your server vulnerable (and IPtables inoperative) if a particular FQDN cannot be resolved. The iptables-restart script takes another approach and removes the offending rule from your whitelist, alerts you to the problem, and then restarts iptables without the offending entry. So all existing rules are put back in place and function as you would expect.

Finally, Travelin’ Man 3 includes a script that allows you to utilize FQDNs for users that may have ever-changing dynamic IP addresses. Steps #4, #5, and #6 in the original Travelin’ Man 3 tutorial will walk you through the Administrator set up which only takes a minute or two and never has to be touched again. Basically, a cron job script is employed to check for changes in the dynamic IP addresses you have identified with FQDNs. If changes are found, IPtables is restarted which updates the IP addresses accordingly.

Unfortunately, there was one group of end-users that weren’t covered by the Travelin’ Man 3 setup. This group included traveling salespeople or vacationing individuals that may land in a different city every night. Rather than relying upon an administrator to provide access to home base, these frequent travelers needed their own tool to manage their IP address as it changed. While this was supported through a web interface in Travelin’ Man 2, that setup exposed your web server to the public Internet and was burdensome for administrators to initially configure. Most importantly, it didn’t manage remote IP address access using IPtables which made coexistence with TM3 difficult. Thus was born Travelin’ Man 4.

Introducing Travelin’ Man 4: Managing WhiteList Access by Telephone

Travelin’ Man 4 is a new add-on for an existing Travelin’ Man 3 setup. It’s for those that wish to allow traveling individuals to manage their own whitelist access to PBX in a Flash or Incredible PBX using a telephone. An Administrator preconfigures accounts and passwords for the travelers together with the services to which they will have access on the server. Using any cellphone or hotel phone, the traveler simply dials a preconfigured number to access an IVR that will prompt the user for an account number and PIN. Unless you have a spare DID, you can grab a free one from IPkall.com to use with your Travelin’ Man 4 IVR. Once a user is successfully logged in, the IVR will prompt for the user’s IP address to be whitelisted on the server. Enter it using this format: 12*34*56*78.

Within a couple minutes, the new IP address will be properly formatted and then whitelisted in IPtables, and the traveler will be sent an email acknowledging that the account has been activated. Once the account is activated, the traveler can use a SIP softphone application such as Zoiper on any iPhone or Android phone or a softphone on any desktop computer to place and receive calls as well as to check voicemail on the remote PBX in a Flash server. For anyone that doesn’t know their current IP address, a quick visit to WhatIsMyIP.com will tell you. Travelin’ Man 4 is licensed under GPL2 so download a free copy. Then read the tutorial and give it a whirl. Enjoy!

Originally published: Wednesday, May 21, 2014



Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…
