Happy New Year: Introducing Incredible PBX 2021 for Debian

Shifting gears is never easy, and sometimes it takes ill-advised corporate blunders to move the needle. But IBM®’s decimation of the CentOS project last month coupled with the Sangoma® Ransomware fiasco were just the motivation we needed to shift into overdrive and explore alternatives for the Incredible PBX® 2021 project. After six beta releases, we are delighted to introduce Incredible PBX 2021 with ClearlyIP’s FreePBX® 15 module protection and your choice of either Asterisk® 16 or the Asterisk 18 LTS release.

Before we get started, we want to offer our special thanks to the many talented individuals on the VoIP-Info.org Forum and the ClearlyIP development team who helped to bring this open source product to fruition. Keep in mind that it was produced during this holiday season without missing a beat and in spite of 2020’s Covid-19 pandemic and the Sangoma® infamous security breach, the handling of which was so bad that we can’t muster enough tact to write about it. With Incredible PBX 2021, Sangoma Ransomware protection is available.






Setting Up a Debian Platform for Incredible PBX 2021

If you’re using on-premise hardware, begin by downloading the netinst ISO image of Debian 10 for amd64. Follow our previous tutorials for tips on installation with VirtualBox or VMware ESXi. If you’d prefer to experiment in the cloud for about a penny an hour, open an account at Vultr or Digital Ocean using our referral links that support the Nerd Vittles project. You’ll also get some free credit to try out the service. Then create a new $5/month Debian 10, 64-bit instance in your favorite city.

If you’re using other cloud platforms with a Debian 10 offering, we strongly recommend a KVM platform. Also be advised that all Debian 10 releases are not equal. So be sure to upgrade to the latest Debian 10 release before you proceed. Here are the steps:

apt-get update --allow-releaseinfo-change
apt-get upgrade
# GRUB prompt: install to /dev/vda
#  SSH prompt: keep local version
reboot

If your PBX is sitting behind a NAT-based router, you’ll need to redirect incoming UDP 5060-5061 and UDP 10000-20000 traffic to the private IP address of your server. This is required for all of the SIP providers included in the Incredible PBX 2021 build. Otherwise, all inbound calls will fail.

Installing Incredible PBX 2021 on Debian 10 Server

Once your Debian 10 platform is up and running, login as root using SSH or Putty. If you wish to use the default Asterisk 18 platform, issue the commands below to kick off the install. If you’d prefer to stick with Asterisk 16 for the time being and perhaps upgrade to Asterisk 18 later with the included upgrade script, then edit the script once you download it and change 18 to 16 in line 34 of the script before executing it.

wget http://incrediblepbx.com/IncrediblePBX2021.sh
chmod +x IncrediblePBX2021.sh
./IncrediblePBX2021.sh

At about 5 minutes into the install procedure, you’ll be prompted for your telephone country code. It’s 1 for Canada and the United States. Just before the install completes, you’ll be prompted to save your default IPtables setup. Once the installation completes, reboot and you should be good to go.

After you log back in following a reboot, check the version of Debian 10 in the pbxstatus display. If it’s less than 10.7, issue the following commands to bring your server up to Debian 10.10 or later, not Debian 11. Do NOT do this before the base install is finished, or Asterisk may fail to install properly.

apt-get update
apt-get upgrade -y

Next Steps with Incredible PBX 2021

Before you can manage your PBX through a web browser, you first will need to set the admin passwords for FreePBX, Apache web apps such as Reminders and AsteriDex, and AvantFax (if you are using Incredible Fax). These all can be set by logging into your server as root and issuing the following commands: admin-pw-change, apache-pw-change, and avantfax-pw-change. The AvantFax password can also be reset with a browser by first logging in as admin with a password of password.

Outbound mail functionality needs to be working so that you can receive voicemail messages and faxes by email. To prevent SPAM, most ISPs and ITSPs block messages from downstream mail servers. That would be you. The easiest way to resolve this is to configure SendMail using Gmail as an SMTP Smarthost. You obviously need a Gmail account to implement this and, if you have turned on two-factor authentication for your Gmail account, you also will need to obtain an App password for your Gmail account, and use that in lieu of your regular Gmail password when configuring SendMail. With your Gmail username and password in hand, log into your server as root and run: /root/enable-gmail-smarthost-for-sendmail.

If your Incredible PBX 2021 is hosted with a cloud provider, be advised that many providers do not include a swap file as part of their offering. FreePBX requires a swap file. To add one, issue this command after logging into your server as root: /root/create-swapfile-DO.

To correctly set the time on your PBX, run: /root/timezone-setup.

By default, the voicemail password for each of the configured extensions (701-705) is set to the extension number. This means the user will be prompted to set a voicemail password on the first login to voicemail for each extension. A phone must be registered to the actual extension to access its voicemail account. For example, once a phone is registered to extension 701, the voicemail setup can be accessed by dialing *98701.

If you want to send and receive faxes with Incredible PBX 2021, run the following script while logged into your server as root: /root/incrediblefax2020-debian10.sh. When prompted, accept all the defaults. Once the HylaFax and AvantFax components are installed, reboot your server. To send faxes, click on the AvantFax tab in the FreePBX GUI and enter your login credentials (default: admin/password). To receive incoming faxes once you have configured a trunk and DID for your PBX, login to the FreePBX GUI as admin. Navigate to Connectivity -> Inbound Routes. For each of your DIDs on which you wish to receive faxes, select the inbound route and click the Fax tab. Review the Default Inbound Route Fax settings for proper setup.

NOTE: If you get a database error when you attempt to access AvantFax from a web browser, log into your server as root and reinstall the AvantFax database: ./avantfax-db-replace.

Overview of the Initial Asterisk Setup Process

For those new to PBXs, here’s a two paragraph summary of how Voice over IP (VoIP) works. Phones connected to your PBX are registered with Extensions so that they can make and receive calls. When a PBX user picks up a phone and dials a number, an Outbound Route tells the PBX which Trunk to use to place the call based upon established dialing rules. Unless the dialed number is a local extension, a Trunk registered with some service provider accepts the call, and the PBX sends the call to that provider. The provider then routes the call to its destination where the recipient’s phone rings to announce the incoming call. When the recipient picks up the phone, the conversation begins.

Looking at things from the other end, when a caller somewhere in the world wishes to reach you, the caller picks up a telephone and dials a number known as a DID that is assigned to you by a provider with whom you have established service. When the provider receives the call to your DID, it routes the call to your PBX based upon destination information you established with the provider. Your PBX receives the call with information identifying the DID of the call as well as the CallerID name and number of the caller. An Inbound Route on your PBX then determines where to send the call based upon that DID and CallerID information. Typically, a call is routed to an Extension, a group of Extensions known as a Ring Group, or an IVR or AutoAttendant giving the caller choices on routing the call to the desired destination. Once the call is routed to an Extension, the PBX rings the phone registered to that Extension. When you pick up the phone, the conversation begins.

Configuring Trunks with Incredible PBX GUI

Perhaps the most difficult component to configure in the PBX is the Trunk. Almost every provider has a different way of doing things. We’ve taken some of the torture out of the exercise by providing a script which will configure settings for dozens of providers in seconds. Once installed, all you need to do is edit the desired Trunk (Connectivity:Trunks), change the Disable Trunk entry to No, and insert your credentials in both the PEER Details and Registration string of the SIP Settings Outgoing and Incoming tabs. Skyetel is enabled by default and needs no setup on the PBX side.

Configuring Skyetel for Incredible PBX 2021

If you’ve decided to go with Skyetel, here’s the drill. Sign up for Skyetel service and take advantage of the Nerd Vittles specials. First, complete the Prequalification Form here. You then will be provided a link to the Skyetel site to complete your registration. Once you have registered on the Skyetel site and your account has been activated, open a support ticket and request the $10 credit for your account by referencing the Nerd Vittles special offer. Once you are satisfied with the service, fund your account as desired, and Skyetel will match your deposit of up to $250 simply by opening another ticket. That gets you up to $500 of half-price calling. Credit is limited to one per person/company/address/location. Effective 10/1/2023, $25/month minimum spend required.

Skyetel does not use SIP registrations to make connections to your PBX. Instead, Skyetel utilizes Endpoint Groups to identify which servers can communicate with the Skyetel service. An Endpoint Group consists of a Name, an IP address, a UDP or TCP port for the connection, and a numerical Priority for the group. For incoming calls destined to your PBX, DIDs are associated with an Endpoint Group to route the calls to your PBX. For outgoing calls from your PBX, a matching Endpoint Group is required to authorize outbound calls through the Skyetel network. Thus, the first step in configuring the Skyetel side for use with your PBX is to set up an Endpoint Group. Here’s a typical setup for Incredible PBX 2021:

  • Name: MyPBX
  • Priority: 1
  • IP Address: PBX-Public-IP-Address
  • Port: 5060
  • Protocol: UDP
  • Description: my.incrediblepbx.com

To receive incoming PSTN calls, you’ll need at least one DID. On the Skyetel site, you acquire DIDs under the Phone Numbers tab. You have the option of Porting in Existing Numbers (free for the first 60 days after you sign up for service) or purchasing new ones under the Buy Phone Numbers menu option.

Once you have acquired one or more DIDs, navigate to the Local Numbers or Toll Free Numbers tab and specify the desired SIP Format and Endpoint Group for each DID. Add SMS/MMS and E911 support, if desired. Call Forwarding and Failover are also supported. That completes the VoIP setup on the Skyetel side. System Status is always available here.

Configuring VoIP.ms for Incredible PBX 2021

To sign up for VoIP.ms service, may we suggest you use our signup link so that Nerd Vittles gets a referral credit for your signup. Once your account is set up, you’ll need to set up a SIP SubAccount and, for Authentication Type, choose Static IP Authentication and enter your Incredible PBX 2021 server’s public IP address. For Transport, choose UDP. For Device Type, choose Asterisk, IP PBX, Gateway or VoIP Switch. Order a DID in their web panel, and then point the DID to the SubAccount you just created. Be sure to specify atlanta1.voip.ms as the POP from which to receive incoming calls. In the Incredible PBX GUI, be sure to enable the VoIP.ms trunk.

Configuring V1VoIP for Incredible PBX 2021

To sign up for V1VoIP service, sign up on their web site. Then login to your account and order a DID under the DIDs tab. Once the DID has been assigned, choose View DIDs and click on the Forwarding button beside your DID. For Option #1, choose Forward to IP Address/PBX. For the Forwarding Address, enter the public IP address of your server. For the T/O (timeout) value, set it to 2o seconds. Then click the Update button. Under the Termination tab, create a new Endpoint with the public IP address of your server so that you can place outbound calls through V1VoIP. In the Incredible PBX GUI, be sure to enable all of the V1VoIP trunks.

Configuring Anveo Direct for Incredible PBX 2021

To sign up for Anveo Direct service, sign up on their web site and then login. After adding funds to your account, purchase a DID under Inbound Service -> Order DID. Next, choose Configure Destination SIP Trunk. Give the Trunk a name. For the Primary SIP URI, enter $[E164]$@server-IP-address. For Call Options, select your new DID from the list. You also must whitelist your public IP address under Outbound Service -> Configure. Create a new Call Termination Trunk and name it to match your server. For Dialing Prefix, choose six alphanumeric characters beginning with a zero. In Authorized IP Addresses, enter the public IP address of your server. Set an appropriate rate cap. We like $0.01 per minute to be safe. Set a concurrent calls limit. We like 2. For the Call Routing Method, choose Least Cost unless you’re feeling extravagant. For Routes/Carriers, choose Standard Routes. Write down your Dialing Prefix and then click the Save button.

Before you can make outbound calls through Anveo Direct from your PBX, you first must configure the Dialing Prefix that you wrote down in the previous step. Log into the GUI as admin using a web browser and edit the Anveo-Out trunk in Connectivity -> Trunks. Enable the Trunk. Then click on the custom-Settings tab and replace anveo-pin with your actual Dialing Prefix. Click Submit and Apply Config to complete the setup. In the Incredible PBX GUI, be sure to enable all of the remaining Anveo trunks.

By default, incoming Anveo Direct calls will be processed by the Default inbound route on your PBX. If you wish to redirect incoming Anveo Direct calls using DID-specific inbound routes, then you’ve got a bit more work to do. In addition to creating the inbound route using the 11-digit Anveo Direct DID, enter the following commands after logging into your server as root using SSH/Putty:

cd /etc/asterisk
echo "[from-anveo]" >> extensions_custom.conf
echo "exten => _.,1,Ringing" >> extensions_custom.conf
echo "exten => _.,n,Goto(from-trunk,\\${SIP_HEADER(X-anveo-e164)},1)" >> extensions_custom.conf
asterisk -rx "dialplan reload"

Configuring Extensions with Incredible PBX GUI

Extensions are created using the Incredible PBX GUI: Applications:Extensions. Many SIP phones expect extensions to communicate on UDP port 5060. If this is the case with your SIP phone or softphone, then always create Chan_SIP extensions which communicate on UDP 5060. If your SIP phone or softphone provide port flexibility, then you have a choice in the type of SIP extension to create: Chan_SIP or the more versatile PJSIP (UDP 5061). Just remember to always configure SIP extensions with NAT Mode=YES in the Advanced tab. If your VoIP phones or softphones support IAX connectivity, you may wish to consider IAX extensions which avoid NAT problems.

When you create a new Extension, a new entry is automatically created in the PBX Internal Directory. If you wish to allow individual users to manage their extensions or use the WebRTC softphone, then you will also have to create a (very) secure password for User Control Panel (UCP) access. Choose Admin:User Management and click on the key icon of the desired extension to assign a password for UCP and WebRTC access.

Configuring a Desktop Softphone for Incredible PBX

We’re in the home stretch now. You can connect virtually any kind of telephone to your new PBX. Plain Old Phones require an analog telephone adapter (ATA) which can be a separate board in your computer from a company such as Digium. Or it can be a standalone SIP device such as ObiHai’s OBi100 or OBi110 (if you have a phone line from Ma Bell to hook up as well). SIP phones can be connected directly so long as they have an IP address. These could be hardware devices or software devices such as the YateClient softphone. We’ll start with a free one today so you can begin making calls. You can find dozens of recommendations for hardware-based SIP phones both on Nerd Vittles and the PIAF Forum when you’re ready to get serious about VoIP telephony.

We recommend YateClient for Windows which is free. Download it from here. Run YateClient once you’ve installed it and enter the credentials for the 701 extension on Incredible PBX. You can find them by running /root/show-passwords. You’ll need the IP address of your server plus your extension 701 password. In the YateClient, fill in the blanks using the IP address of your Server, 701 for your Username, and whatever Password was assigned to the extension when you installed Incredible PBX. Click OK to save your entries.

Once you are registered to extension 701, close the Account window. Then click on YATE’s Telephony Tab and place some test calls to the numerous apps that are preconfigured on Incredible PBX. Dial a few of these to get started:

DEMO - Apps Demo
123 - Reminders
947 - Weather by ZIP Code
951 - Yahoo News
TODAY - Today in History
LENNY - The Telemarketer's Worst Nightmare

If you are a Mac user, another great no-frills softphone is Telephone. Just download and install it from the Mac App Store. For Android users, check out the terrific new VitalPBX Communicator. Works flawlessly with Incredible PBX.

Configuring a Softphone Extension on a Smartphone

Adding an Incredible PBX extension to your smartphone gets a little trickier. Whether you’re an iPhone or Android lover, all smartphones use batteries, and you don’t want to drain your battery by running a softphone as a foreground app all the time. Fortunately, you now have some choices in softphones engineered to work without draining your battery. While they all cost money, it’s not much money. We’ve written about all the choices, and you’ll find the links in our Softphone Provider Recommendations on the new Incredible PBX Wiki.

With PJsip extensions, you’re not limited to a single phone connection at a time, and we’ve preconfigured extension 701 to support five simultaneous connections. The setup on the softphone side is simple. For the server, enter the actual IP address of your PBX in the following format: 22.33.44.55:5061. Then enter 701 for the username and enter the password assigned to the 701 extension on your PBX. When an incoming call arrives, all the phones registered to extension 701 will ring simultaneously. Simply answer the call on the phone that is most convenient.

Configuring Outbound Routes in Incredible PBX GUI

Outbound Routes serve a couple of purposes. First, they assure that calls placed by users of your PBX are routed out through an appropriate trunk to reach their destination in the least costly manner. Second, they serve as a security mechanism by either blocking or restricting certain calls by requiring a PIN to complete the calls. Never authorize recurring charges on credit cards registered with your VoIP providers and, if possible, place pricing limits on calls with your providers. If a bad guy were to break into your PBX, you don’t want to give the intruder a blank check to make unauthorized calls. And you certainly don’t want to join the $100,000 Phone Bill Club.

To create outbound routes in the Incredible PBX GUI, navigate to Connectivity:Outbound Routes and click Add Outbound Route. In the Route Settings tab, give the Outbound Route a name and choose one or more trunks to use for the outbound calls. In the Dial Patterns tab, specify the dial strings that must be matched to use this Outbound Route. NXXNXXXXXX would require only 10-digit numbers with the first and fourth digits being a number between 2 and 9. Note that Outbound Routes are searched from the top entry to the bottom until there is a match. Make certain that you order your routes correctly and then place test calls watching the Asterisk CLI to make sure the calls are routed as you intended.

Configuring Inbound Routes in Incredible PBX GUI

Inbound Routes, as the name implies, are used to direct incoming calls to a specific destination. That destination could be an extension, a ring group, an IVR or AutoAttendant, or even a conference or DISA extension to place outbound calls (hopefully with a very secure password). Inbound Routes can be identified by DID, CallerID number, or both. To create Inbound Routes, choose Connectivity:Inbound Routes and then click Add Inbound Route. Provide at least a Description for the route, a DID to be matched, and the Destination for the incoming calls that match. If you only want certain callers to be able to reach certain extensions, add a CallerID number to your matching criteria. You can add Call Recording and CallerID CNAM Lookups under the Other tab.

Audio Issues with Incredible PBX 2021

If you experience one-way or no audio on some calls, add your external IP address and LAN subnet in the GUI by navigating to Settings -> Asterisk SIP Settings. In the NAT Settings section, click Detect Network Settings. Click Submit and Apply Settings to save your changes.

Security Considerations with Incredible PBX 2021

Incredible PBX 2021 includes a rock-solid firewall that limits access to preferred providers and individuals whose IP addresses you have whitelisted. Unfortunately, this may not insulate your server from FreePBX 15 irregularities if, in fact, Sangoma’s signing key was compromised in the October 2020 Ransomware Attack. Sangoma either doesn’t know or isn’t telling. Keep in mind that Sangoma didn’t mention the October breach either until someone else exposed it. Sangoma’s latest press release is available here.

The good news is Incredible PBX 2020 and 2021 platforms include a unique ClearlyIP feature that lets us manage which modules and versions can be installed. It works exactly like what ClearlyIP has documented in their must-read blog post, and we’ve built a locked version that rolls back all of the modules to dates before the Sangoma breach. The good news is, with Incredible PBX, you don’t have to jump through all the hoops covered in the ClearlyIP article to fully insulate your server from the Ransomware breach. We’ve done the work for you.

For those with mission-critical platforms, we’d recommend immediate implementation of what follows. For everyone else, it’s your choice whether to wait and see if there is a breach of the signing certificate with malicious modules. If you opt to wait and see, MAKE FREQUENT BACKUPS.

Here’s how to roll back all of your modules to dates before the breach. Login to the FreePBX GUI as admin and navigate to Settings > Advanced Settings. Drop down to the Lock Version field and change 15.19.11.001 to 15.19.11.003. Save your changes and reload your dialplan. Then use Module Admin to roll back any installed modules that are newer than the safe versions shown.

Our extra special thanks goes to Tony Lewis and the ClearlyIP team for providing this invaluable resource. Somehow we knew it would come in handy sooner or later. Unfortunately, that day has come.

Adding Incredible PBX 2021 to an OpenVPN Network

We previously have documented the procedure for creating an OpenVPN server as well as OpenVPN client templates (.ovpn). If you need a refresher, the tutorial is here. To add your Incredible PBX 2021 server to an existing OpenVPN network, begin by creating an incrediblepbx2021.ovpn template on your OpenVPN server. Be sure to comment out or delete the setenv line in the template. Then copy this template to /etc on your Incredible PBX 2021 server. Next, issue the following commands to put the remaining pieces in place:

cp -p /root/openvpn-start /etc/.
echo "[Unit]
Description=openvpn2021
ConditionPathExists=/etc/openvpn-start
After=rclocal.service
[Service]
Type=forking
ExecStart=/etc/openvpn-start /etc/incrediblepbx2021.ovpn
TimeoutSec=0
StandardOutput=tty
RemainAfterExit=yes
PermissionsStartOnly=true
SysVStartPriority=99
[Install]
WantedBy=multi-user.target" > /etc/systemd/system/openvpn2021.service

Finally, enable the new openvpn2021.service and reboot your server. The OpenVPN IP address should now appear on the LAN line in pbxstatus:

systemctl enable openvpn2021.service
reboot

Incredible PBX 2021 Administration

We’ve eased the pain of administering your new PBX with a collection of scripts which you will find in the /root folder after logging in with SSH or Putty. Here’s a quick summary of what each of the scripts does.

add-fqdn is used to whitelist a fully-qualified domain name in the firewall. Because Incredible PBX 2021 blocks all traffic from IP addresses that are not whitelisted, this is what you use to authorize an external user for your PBX. The advantage of an FQDN is that you can use a dynamic DNS service to automatically update the IP address associated with an FQDN so that you never lose connectivity.

add-ip is used to whitelist a public IP address in the firewall. See the add-fqdn explanation as to why this matters.

del-acct is used to remove an IP address or FQDN from the firewall’s whitelist.

admin-pw-change is used to set the admin password for access to the FreePBX/Incredible PBX web GUI using a browser pointed to the local IP address of your server.

apache-pw-change is used to set the admin password for access to Apache/Incredible PBX apps including AsteriDex and Reminders. This provides a password layer of protection for access to these applications.

avantfax-email-change is used to change the destination email address for incoming faxes.

avantfax-pw-change is used to change your admin password for the AvantFax web console.

iaxmodem-restart is used to restart the modems used to send and deliver faxes. The pbxstatus display will tell you whether the IAXmodems are down.

incrediblebackup2021 makes a backup of critical components on your PBX to a tarball saved in /backup. This should be copied to safe location off-site for a rainy day.

incrediblerestore2021 restores a backup file which has been copied to the /backup folder.

ipchecker is a script which deciphers the public IP addresses associated with whitelisted FQDNs created with add-fqdn on your server. If any of the addresses have changed, the firewall is restarted after updating the IP addresses. By default, it is executed every 10 minutes by /etc/crontab.

licenses.sh displays the license associated with each of the FreePBX modules on your server.

logos-b-gone removes proprietary artwork from your PBX and is no longer necessary with the included IncrediblePBX FreePBX module.

mime-construct is a command-line utility to send emails with attachments.

neorouter-login is a script to add your PBX to a NeoRouter VPN. Tutorial here.

odbc-gen.sh is a script that was run to generate the ODBC settings for Asterisk. Do NOT use it.

openvpn-start is a script to add your PBX to an existing OpenVPN network using an .ovpn config file. Tutorial here.

pbxstatus displays status of all major components of Incredible PBX 2021.

pptp-install is a script to create a PPTP network connection for your PBX. Tutorial here.

purge-cdr-cel-records removes all CDR and CEL records from the MySQL database.

reset-conference-pins is a script that automatically and randomly resets the user and admin pins for access to the preconfigured conferencing application. Dial C-O-N-F from any registered SIP phone to connect to the conference.

reset-extension-passwords is a script that automatically and randomly resets ALL of the SIP passwords for extensions 701-705. Be careful using this one, or you may disable existing registered phones and cause Fail2Ban to blacklist the IP addresses of those users. HINT: You can place a call to the Ring Group associated with all five extensions by dialing 777.

reset-reminders-pin is a script that automatically and randomly resets the pin required to access the Telephone Reminders application by dialing 123. It’s important to protect this application because a nefarious user could set up a reminder to call a number anywhere in the world assuming your SIP provider’s account was configured to allow such calls.

show-feature-codes is a cheat sheet for all of the feature codes which can be dialed from any registered SIP phone. It documents how powerful a platform Incredible PBX 2021 actually is. A similar listing is available in the GUI at Admin -> Feature Codes.

show-passwords is a script that displays most of the passwords associated with Incredible PBX 2021. This includes SIP extension passwords, voicemail pins, conference pins, telephone reminders pin, and your Anveo Direct outbound calling pin (if configured). Note that voicemail pins are configured by the user of a SIP extension the first time the user accesses the voicemail system by dialing *97.

sig-fix disables Module Signature Checking in the FreePBX GUI. This should not be necessary unless you have added or edited FreePBX Modules with missing module signatures.

sms-skyetel is a script to send SMS messages using a Skyetel trunk.

sms-voip.ms is a script to send SMS messages using a VoIP.ms trunk.

sms-blast, sms-blaster, and sms-dictator are scripts for message blasting. Tutorial here.

switch-to-php5.6 is a script to disable PHP 7.3 and set PHP 5.6 as the default version for your PBX. PHP 5.6 is required to use AvantFax. It is the default configuration for Incredible PBX 2021. The current default PHP version is displayed in the Apache listing of pbxstatus.

switch-to-php7.3 is a script to disable PHP 5.6 and set PHP 7.3 as the default version for your PBX. You cannot use AvantFax when PHP 7.3 is the default.

timezone-setup is a script to set the timezone for your PBX.

update-IncrediblePBX is a script that runs the Automatic Update Utility whenever you login to your server as root. These updates typically resolve bugs and security issues with your PBX. Do NOT remove it.

upgrade-asterisk16 is a script that runs on Asterisk 16 platforms to upgrade your PBX to the latest release of Asterisk 16.

upgrade-asterisk18 is a script that runs on both Asterisk 16 and 18 platforms to upgrade your PBX to the latest release of Asterisk 18.

wolfram is a script to deploy Wolfram Alpha on your PBX. Tutorial here.

Forwarding Calls to Your Cellphone. Keep in mind that inbound calls to your DIDs automatically ring all five SIP extensions, 701-705. The easiest way to also ring your cellphone is to set one of these five extensions to forward incoming calls to your cellphone. After logging into your PBX as root, issue the following command to forward calls from extension 705 to your cellphone: asterisk -rx "database put CF 705 6781234567"

To remove call forwarding: asterisk -rx "database del CF 705"

Keeping FreePBX 15 Modules Current

We strongly recommend that you periodically update all of your FreePBX modules to eliminate bugs and to reduce security vulnerabilities. From the Linux CLI, log into your server as root and issue the following commands:

rm -rf /tmp/*
fwconsole ma upgradeall
fwconsole reload
/root/sig-fix
systemctl restart apache2
/root/sig-fix

Ready to turn Incredible PBX 2021 into a PUBLIC-Facing PBX? Here’s how.



Originally published: Friday, January 1, 2021



Need help with Asterisk? Visit the VoIP-info Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.

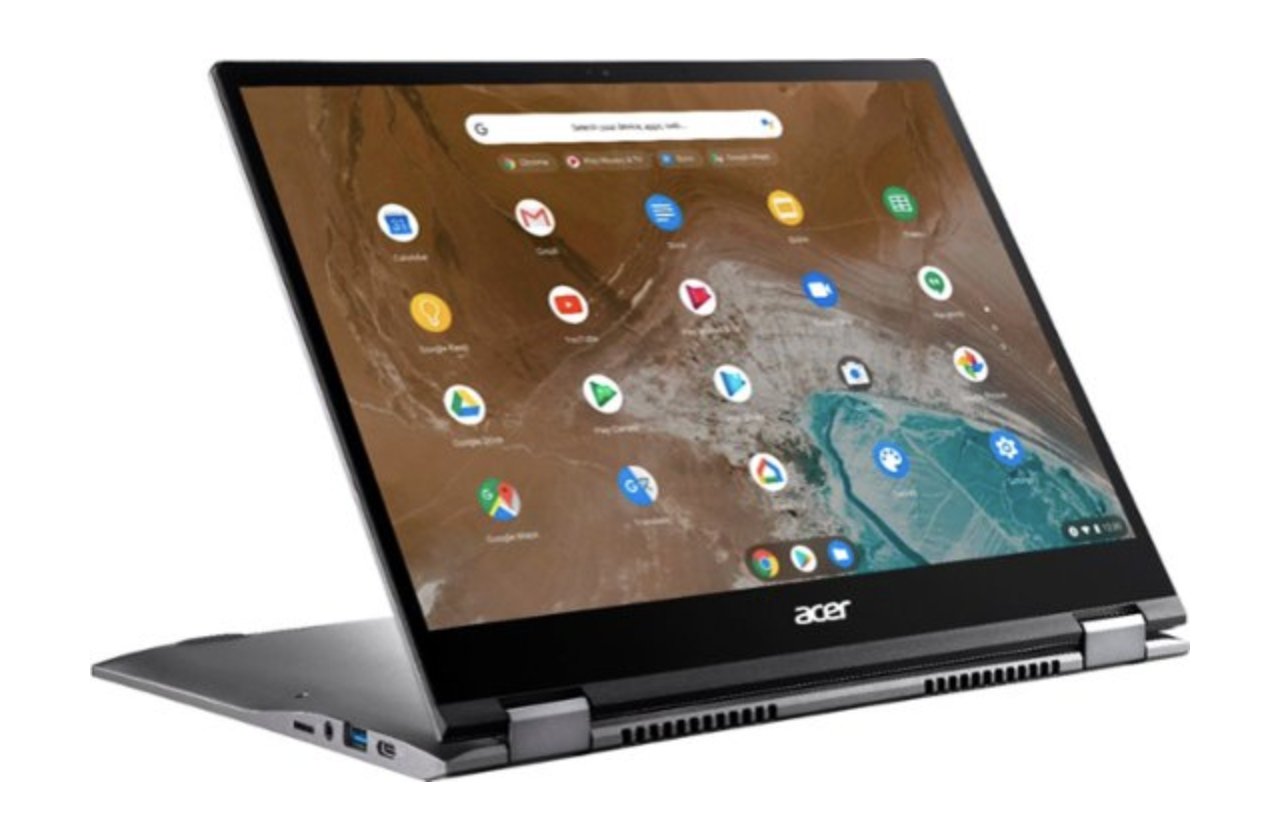

Meet Acer Spin 713: A Phenomenal Computer for All Seasons



It’s a portable office. It’s a movie theater. It’s a LAMP server. It’s a desktop PC. It’s a tablet computer. It’s a Chrome browser. It’s an Android platform. It’s a Linux server. And it gets almost 8 years of free software and firmware updates. Meet the $629 Acer Chromebook Spin 713. And, if you hurry, it’s $80 off at Best Buy today.

The checklist of superlatives is almost too lengthy to mention: a touchscreen of unrivaled quality, a 12-hour battery, dongle-free ports galore: HDMI, USB-C, USB 3.0, microSD slot, and headphone jack. While Chromium notebooks began as little more than a Chrome browser, that was then. The 2020 iteration includes complete Android integration as well as a feature-complete Debian 10 virtual machine platform supporting Apache, PHP 7, and the latest MariaDB/MySQL. If movies and television are your thing, Netflix and Sling TV transform the Chromebook into a near perfect viewing platform. As they say, seeing is believing. So here’s a snapshot from an iPhone that captures the quality of the 2256×1504-pixel (3:2 QHD) display. Suffice it to say, the display is as good or better than our $3,000 MacBook Pro’s screen.


Did we mention Best Buy’s $629 price. This 2-in-1 is a steal. It’s $200 below today’s Amazon pricing and is $400 below the closest comparable Chromebook models. Some may recall that we reviewed the System76 Lemur Pro Linux notebook in August and raved about its pricing at $1322, more than double the cost of Acer’s Spin 713. Having used both machines, I can honestly say you lose nothing by choosing the Acer device, and you gain access to the entire Android platform including Google Play as well as Linux. And the Spin 713 converts into a touchscreen tablet simply by flipping the screen. The only downside is, if these machines go on sale for Black Friday, you will be hard-pressed to find one to buy.

Deploying a LAMP Server with a Chromebook

If you pick up one of these bad boys, here’s a quick primer on setting up a LAMP server on the Linux virtual machine. Begin by enabling it in the Settings tab. Next, click on the Linux Terminal option in your Applications. At the Linux prompt, set up a new root user password: sudo passwd root. Switch to the root user account: su root. Now enter these commands:

cd ~
apt update
apt upgrade
apt install apache2 apache2-utils -y
systemctl start apache2
systemctl enable apache2
chown www-data:www-data /var/www/html/ -R
apt install mariadb-server mariadb-client -y
systemctl start mariadb
systemctl enable mariadb
mysql_secure_installation
apt install php7.3 libapache2-mod-php7.3 php7.3-mysql php-common \\
php7.3-cli php7.3-common php7.3-json php7.3-opcache php7.3-readline \\
php7.3-mbstring php7.3-dev -y
systemctl restart apache2
echo "<?php phpinfo(); ?>" > /var/www/html/info.php
echo "ip a" > /usr/local/bin/ifconfig
chmod +x /usr/local/bin/ifconfig
ifconfig | grep "inet "


Make note of your Linux machine’s IP address (last command above) and use a browser to access and verify the PHP info for your server: http://Spin-IP-Address/info.php

In the alternative, use this FQDN: http://penguin.linux.test/info.php

In keeping with their tradition of idiotic obsolescence, the PHP developers dropped support for mysqli in PHP 7 which means the mysql_connect function to interact with MySQL databases fails. Here’s how to restore it:

mkdir /usr
mkdir /usr/src
apt install build-essential git
cd /usr/src
git clone https://github.com/wardmundy/pecl-database-mysql mysql --recursive
cd mysql
phpize
./configure
make
make install
cd /etc/php/7.3/apache2
echo "extension=/usr/lib/php/20180731/mysql.so" >> php.ini
systemctl restart apache2

The mysql and mysqli sections will now magically reappear in your phpinfo() listing.



Adding Clearly Anywhere Softphone to the Spin 713

As noted, the Spin 713 also is a fully functional Android platform so adding the Clearly Anywhere softphone is easy. Simply download the software from Google Play. Then run the app and enter your extension credentials and FQDN of Incredible PBX 2020 PUBLIC server.

Adding Linphone Softphone to the Spin 713

Adding the Linphone softphone is equally easy. Simply download the software from Google Play. Then run the app and enter your Linphone SIP credentials with the configuration setup documented in our tutorial. Linphone calls to other Linphone users and to Incredible PBX 2020 PUBLIC users or anyone with a SIP URI worldwide are free.

Installing OpenVPN for Android on the Spin 713

There are several ways to install OpenVPN on the Spin 713 platform. You can use the traditional method we’ve documented for Linux installs; however, you will lose the ability to use OpenVPN IP addresses from your desktop and browser. The better method is to install the OpenVPN for Android client from the Play Store. Next, send yourself an email with the .ovpn file you created for the Chromebook. Open the message using Gmail on the Chromebook and save the received file in your Downloads folder. Open the OpenVPN for Android app on your desktop. Choose the + icon to create a new Profile and select the .ovpn file from Downloads. Once installed, edit the Settings. In the IP and DNS tab, disable No Local Binding. Enable Override DNS Settings and specify 8.8.8.8 and 8.8.4.4 for your DNS servers. Enable PULL Settings.In the ROUTING tab, enable Bypass VPN for Local Networks and Block IPv6. Then Start the VPN Client by clicking on your saved Profile.

Installing Zoom for Debian 10 on the Spin 713

No computer platform would be complete without Zoom. Begin by downloading Zoom for Debian here. In the File Manager (Alt-Shift-m), navigate to your Downloads folder and double-click on zoom_amd64.deb to install the application. Once installed, it will appear in your Linux apps container. Right-click (HINT: tap touchpad with two fingers) on Zoom icon to add Zoom to your Shelf.

Installing phpMyAdmin for PHP 7.3 on the Spin 713

No development platform would be complete without phpMyAdmin. We found an excellent tutorial to get everything set up properly with a few minor changes. Your LAMP platform already is in place so skip down to Step 2 in the tutorial. There’s one important correction in the instructions. Step 4, item 1 should be: sudo mkdir /var/www/html/phpmyadmin. And accessing phpMyAdmin once installed should be: http://Spin-IP-address/phpmyadmin.

Mastering Chromebook Shortcuts on the Spin 713

If you learn no other keyboard shortcut, remember this one: Ctrl + Alt + /. That gets you the entire list of keyboard shortcuts on the Chromebook. These keyboard shortcuts are a bit like memorizing multiplication tables. The sooner you learn them, the happier you will be using your Chromebook. If you’re an avid Linux user, be advised that the Linux virtual machine and the Chromebook desktop share the same clipboard so you can easily copy-and-paste between the two environments. On the desktop, Ctrl-c copies to the clipboard, and Ctrl-v pastes data from the clipboard. In the Linux virtual machine, Ctrl-Shift-C copies to the clipboard, and Ctrl-Shift-V pastes data from the clipboard. Learn a few new shortcuts each time you use your Chromebook. You’ll be amazed how quickly your productivity improves.

Where To Go From Here?

While you’re getting your feet wet, here are some must-have’s for your Spin 713. For openers, feast your eyes on the 4K Nature Videos on YouTube. Prepare to be blown away.

Next, you’ll want a free Office Suite for your Chromebook. Our favorite is WPS Office which provides Microsoft-compatible versions of Word, Excel, Powerpoint and a PDF Viewer/Editor.

For video editing, nothing comes close to PowerDirector. Also check out YouTube Studio.

For photo editing, Adobe Lightroom is the hands-down winner. Google Photos and Snapseed (our personal favorite) are also worth a careful look. Both are free compliments of Google.

For Nerds, check out the Crostini Wiki on Reddit. And master the Crosh terminal commands.



Originally published: Monday, November 16, 2020  Updated: Monday, December 7, 2020



Need help with Asterisk? Visit the VoIP-info Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Cyber Monday 2020: TV Deals You Can’t & Shouldn’t Refuse


We try to leave Black Friday and Cyber Monday deals to the big boys but, hey, it’s 2020 and some of these deals may never come along again. Most of these are offerings we’ve tried for ourselves which is different than regurgitating the flyers from Amazon, WalMart, and BestBuy.

Televisions. Who would have ever thought you’d be able to purchase a 75″ 4K Android TV with built-in Chromecast for under $500? TCL has you covered this year at Best Buy.

If you have a back porch that really could use a cord-cutting TV, here’s our favorite 43″ model which is on sale for $209.99. All you need is WiFi and a little electricity to bring this TV to life.

And, speaking of cord-cutting, we assume you already have your Netflix subscription in hand. But now’s the time to add Hulu which is available for $1.99 a month if you hurry. Better yet, if you still have a kid in college, sign them up for a Spotify Student account at $5 a month and both a Hulu and ShowTime subscription are thrown in at no extra cost. Don’t worry about stepping on your kid’s use of the services. They sleep at completely different hours than you do. With the new Android TVs, adding these services is as easy as adding an Android app on your smartphone. Add a Sling TV subscription for $30 a month, and you’ll have more stations than you could ever watch.

DVR Delight. One of the complaints we often hear from the cord-cutters is the absence of a decent digital video recorder for these streaming services. And, of course, none of them let you skip the endless ads in 4+ minute clusters sprinkled throughout your shows and movies. Well, now there’s a solution. If you haven’t tried PlayOn Cloud, you’ve missed the greatest advancement since the Betamax. Here’s how it works. You pay PlayOn a fee to make a cloud-based, ad-skipping recording of your movie or TV show using your credentials for as little as 10¢ for a full-length movie or TV show. Then you get a week to download the MP4 recording at no additional cost. Or you also can sign up for a PlayOn cloud-based storage plan, and they keep your recordings in the cloud for as long as you need them and they remain in business. PlayOn recording, playback, and content management software is free.

For Black Friday through Cyber Monday, you can purchase credits to record 1,000 shows in the cloud for just $100. That’s 10¢ per show or movie, regardless of length. The recordings then can be downloaded to a PC, Mac, or Smartphone at no additional cost for one week from the date of the recording. If you purchase long-term cloud storage, it’s $4.99 a month for 100GB of storage with 20 recording credits every month. $19.99 a month gets you a terabyte of cloud storage plus 40 recording credits each month. You can record shows or movies from any of the channels shown below assuming you have the necessary accounts in place. Is it legal? While this isn’t legal advice, we would label this a close case and would be comfortable representing either side. You can read the history of the Betamax case for yourself and decide whether the time-shifting argument trumps the license agreements of all the streaming services. For the time being, you’re probably okay, but nothing lasts forever… except your downloaded MP4’s and a media player or Roku device. 😉




Originally published: Sunday, November 29, 2020



Need help with Asterisk? Visit the VoIP-info Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Deploying an Incredible PBX 2020 PUBLIC Server



With the almost overnight popularity of the new Clearly Anywhere softphone which provides Incredible PBX connectivity from virtually anywhere, we wanted to revisit our Incredible PBX 2020 PUBLIC tutorial to document some additional tips and tricks. And, because softphones need connectivity on both cellular networks and using Wi-Fi with dynamic IP addresses in multiple locations, exclusive whitelist-based access to Incredible PBX simply was no longer feasible. Additionally, due to Clearly Anywhere’s tight integration with the FreePBX® User Control Panel (UCP), remote access to UCP for mobile users has become more important particularly with the new QR Code auto-configuration option for Clearly Anywhere clients.

Safely deploying a public-facing Asterisk® server with full FreePBX functionality has become the Holy Grail for Nerd Vittles in 2019. Today we tackle it on the new Incredible PBX® 2020 platform featuring the latest releases of Asterisk 16 and FreePBX 15. The icing on today’s cake is an additional offer from Skyetel that supplements the current Nerd Vittles BOGO offer of up to $500 in half-priced VoIP services. Skyetel now starts you off with a $10 credit just for opening an account here. Then, after you have had an opportunity to kick the tires and perhaps purchase a DID for a buck, you can make $9 worth of phone calls before deciding whether to take advantage of the BOGO special by making a purchase of up to $250 and having Skyetel match your contribution. Once you have funded your account, you then can also take advantage of Skyetel’s free number porting offer for the next 60 days. To get your $10 credit, just open a ticket and request the $10 Nerd Vittles credit once you’ve signed up. To get the Nerd Vittles BOGO price match and take advantage of free number porting, simply open another ticket once you have added up to $250 to your account. Effective 10/1/2023, $25/month minimum spend required.

Making the Case for a Public-Facing PBX

We’ve had some of our pioneers trying out the Incredible PBX PUBLIC implementations for almost a year. Early on, the first question we got was why anyone would want to do this. After all, PBX in a Flash 3 and Incredible PBX for the better part of a decade have been deployed with a whitelist using the Travelin’ Man 3 firewall, and there’s never been a security issue. So why switch horses now? The short answer is mobile users with dynamic IP addresses. If all the users of your PBX are sitting behind the same NAT-based router with static IP addresses, the Travelin’ Man 3 design is perfect. The bad guys could never even see your server. But if some of your users either reside or travel outside your home base or if you want calls to follow you on your smartphone with Clearly Anywhere when you leave home or the office, then Travelin’ Man 3 blocked SIP access from these remote phones until their new IP addresses were whitelisted. Multiply this by dozens or hundreds of users, and network management suddenly became a full-time job. Yes, we’ve had tools such as dynamic DNS and PortKnocker to ease the pain, but it still was a knuckle-drill for mobile users. And, in today’s Covid world, much of the workforce is quickly morphing into mobile users without a traditional desk at any office. What we were also beginning to see were homegrown "improvements" to the IPtables firewall where users that didn’t appreciate the risks were exposing their servers to SIP attacks simply to ease the pain of connecting remotely.

The world also is becoming more SIP savvy. Just as folks are learning that a $35 antenna can provide an awesome collection of 4K Ultra HD TV channels without the expense of a monthly cable bill, others are learning that a SIP telephone or softphone app on your smartphone can provide free calls to and from anybody with a SIP URI without sharing your communications with Facebook or Microsoft. A public-facing PBX makes free worldwide SIP calling a reality.

Building the Base Platform for Incredible PBX PUBLIC

To get started today, begin by installing Incredible PBX 2020 using our latest tutorial. We strongly recommend a cloud-based KVM platform with a static IP address on the public Internet. We’ve even built an Incredible PBX 2020 image for our friends at CrownCloud. You won’t beat their pricing of $25/year which is about the same expense you will incur for electricity hosting your own server on premise. And you even get a snapshot backup at no additional cost.

Once you have set up your Incredible PBX 2020 server, the next step is to assign one or two fully-qualified domain names (FQDNs) to your server. You can have one FQDN for registering SIP extensions and a different one for anonymous SIP (invites) access to your server, or you can use the same FQDN for both. Security through obscurity provides an extra layer of protection for your server so choose your FQDNs carefully. sip.yourname.com provides almost no protection while f246g.yourname.com pretty much assures that nobody is going to guess your domain name. This is particularly important with the FQDN for SIP registrations because registered extensions on your PBX can obviously make phone calls that cost money. If you don’t have your own domain, you can always obtain a free FQDN from a service such as NoIP.com.

By default, Incredible PBX 2020 configures five extensions (701-705) and a Ring Group for those extensions (777) as well as four trunks. With Skyetel, your PBX is ready to make and receive calls as soon as you sign up. With the other three trunk providers, you only need to enable the trunk. You can add as many additional providers and extensions as you like and modify the ring group to meet your needs. To get started, be sure to configure the correct time zone for your server as this affects delivery of reminders. Run /root/timezone-setup. Next, set a secure password for admin access to the FreePBX GUI modules. Run /root/admin-pw-change. Then set a secure password for admin access to web applications such as AsteriDex, Reminders, and User Control Panel. Run /root/apache-pw-change. In addition to reviewing your extensions and ring group, review the default inbound route and choose the destination for the incoming calls from your provider. Finally, configure the outbound route to use the provider sequence desired. By default, it uses Skyetel for outbound calls.

If you plan to use Clearly Anywhere, you’ll need to add at least one PJsip extension on your PBX. Simply navigate to Applications -> Extensions in the FreePBX GUI. Choose Add Extension -> Add PJsip Extension. In the General tab, insert an extension number in User Extension and Display Name, e.g. 707. In the Advanced tab, set Max Contacts to 11 which will let you connect up to 5 Clearly Anywhere softphones to the extension. Click Submit and Reload Dialplan when prompted. Go back into the new extension and make note of your new credentials for User Manager. You’ll need these for Clearly Anywhere. Remember to also add the PJsip extension to the Inbound Route for your incoming calls.

Going Public with Incredible PBX 2020

Once you’ve tested making and receiving calls with your new server, you’re ready to convert it into a public-facing PBX. Before proceeding, remove any whitelist entries you’ve added using add-ip and add-fqdn by running del-acct. These can be added back after the GO-PUBLIC-2020 install script is run. In order to run the install script below, you’ll need your FQDNs that you chose above, plus a port number for future SSH/Putty access to your server, plus a list of the extensions you wish to make available for public access to your PBX. These whitelisted extensions can be reached via SIP URI from anywhere in the world by anybody. It works just like your old MaBell phone. Anybody, anywhere can dial your number. What’s changed is now the calls are free. So choose your list carefully. We recommend using the year you were born for your SSH port to keep things simple for you. Once the GO-PUBLIC-2020 script has been run, you can only access your PBX via SSH/Putty at the new port, for example: ssh -p 1990 root@yourFQDN.com

Now we’re ready to run the install script. It takes less than a minute. Before you begin, log out of ALL SIP extensions you have previously registered with Incredible PBX 2020 and change the server destination from an IP address to the FQDN you plan to assign to SIP registrations. Otherwise, these IP addresses will get banned while the install script is running below!

cd /root
wget http://incrediblepbx.com/go-public-2020.tar.gz
tar zxvf go-public-2020.tar.gz
rm -f go-public-2020.tar.gz
./GO-PUBLIC-2020

A Few Words About Incredible PBX PUBLIC Security

As with all Incredible PBX servers, Incredible PBX 2020-PUBLIC includes the Automatic Update Utility. Please don’t disable it. It’s our only way to push updates to you if some vulnerability is discovered down the road. It gets run whenever you login to your server as root using SSH/Putty. Do so regularly and follow us on Twitter for security alerts. There’s also an Incredible PBX RSS Feed that is displayed when you login to the Incredible PBX GUI with a browser. It, too, includes security alerts and should be checked regularly. It’s your phone bill.

Incredible PBX 2020-PUBLIC uses the ipset utility in conjunction with the IPtables firewall to block several countries that have inordinately high concentrations of folks that try to break into VoIP servers. In addition, your public PBX includes the VoIP Blacklist which includes another 100,000 bad guys from around the globe. These blacklists get updated every night by a script which is run from /etc/crontab. For your own safety, don’t disable or delete /etc/update-voipbl.sh or the other components upon which it relies.

Here are some other things you should do regularly to assure that your server remains secure. Login via SSH/Putty as root and check pbxstatus after the Automatic Update Utility is run. With the exception of the fax components, all the other items should be green all the time. From the Linux CLI, run: iptables -nL. This will show your firewall rules and whether any IP addresses have been banned by Fail2Ban. If there are banned IP addresses that are not your own, please open a thread on the VoIP-Info Forum and let us know about it. If there are dozens of banned IP addresses, shutdown your server immediately until the problem is identified and resolved. If the IP addresses happen to be your own users because of using incorrect passwords or because of using a server IP address instead of its FQDN for SIP registrations, unban the IP address:

fail2ban-client set asterisk unbanip xxx.xxx.xxx.xxx

Finally, watch the Asterisk CLI periodically for abnormal activity: asterisk -rvvvvvvvvvv

Tightening Up SSH Server Access

You obviously need a very secure root password for access to your server using SSH/Putty. Changing the TCP port for SSH access avoids the script kiddies, but it doesn’t offer much protection from a determined cracker. SSH login attempts are monitored by Fail2Ban, but Fail2Ban has issues when a determined intruder is using a powerful computing platform such as Amazon EC2. The more prudent solution is to disable SSH port access and use SSH Public Key Authentication as documented in the linked tutorial. Always, always use ssh-copy-id to copy your credentials to more than one desktop machine so that you don’t inadvertently lock yourself out of your PBX in the case of a hardware failure.

Web Access to Incredible PBX 2020 PUBLIC

By default, web access to all apps including FreePBX, UCP, AvantFax, AsteriDex, and Reminders is limited to whitelisted IP addresses. For some implementations, particularly those using Clearly Anywhere, this may not be ideal as UCP can assist with user management of the PBX as well as QR code provisioning of Clearly Anywhere. The Apache web server can be used to manage web access so long as you understand the need to apply Apache security patches in a timely manner.

Assign the same FQDN that you use for SIP access to port 80 for the UCP application. Deploy OpenVPN on your server and use the PBX’s OpenVPN IP address for general access to all web applications we listed above. If you’d like public access to the FreePBX GUI, assign web access for it to another random port, e.g. 8080 in our example below. Block web access to your server from the public IP address of your PBX on both port 80 and 8080 in our example below. Here’s how to accomplish that. Create a new file in /etc/pbx/httpdconf. Create public.conf with the following contents:

Listen 8080

<virtualhost *:80>
ServerAdmin you@gmail.com
ServerName 111.112.113.114
Redirect 403 /
UseCanonicalName Off
UserDir disabled
</virtualhost>

<virtualhost *:8080>
ServerAdmin you@gmail.com
ServerName 111.112.113.114
Redirect 403 /
UseCanonicalName Off
UserDir disabled
</virtualhost>

<virtualhost *:80>
ServerAdmin you@gmail.com
ServerName server-fqdn.com
DocumentRoot /var/www/html/ucp
ErrorLog /var/log/httpd/error_log
CustomLog /var/log/httpd/access_log common
</virtualhost>

<virtualhost *:80>
ServerAdmin you@gmail.com
ServerName 10.8.0.123
DocumentRoot /var/www/html
ErrorLog /var/log/httpd/error_log
CustomLog /var/log/httpd/access_log common
</virtualhost>

<virtualhost *:8080>
ServerAdmin you@gmail.com
ServerName server-fqdn.com
DocumentRoot /var/www/html
ErrorLog /var/log/httpd/error_log
CustomLog /var/log/httpd/access_log common
</virtualhost>

<virtualhost 127.0.0.1:80>
ServerAdmin you@gmail.com
ServerName 127.0.0.1
ServerAlias localhost
DocumentRoot /var/www/html
</virtualhost>

In the ServerAdmin lines, insert your email address. Replace 111.112.113.114 with the public IP address of your server. Replace server-fqdn.com with the FQDN assigned for SIP registration access to your PBX. Replace 10.8.0.123 with the OpenVPN private IP address of your PBX. Replace 8080 with the port you chose for FreePBX access to your server. Save the file and then restart Apache:  systemctl restart httpd.

Now it should be safe to open TCP port 80 and 8080 (or whatever port you chose) for web access to your server. Let’s also whitelist TCP 2267 for Clearly Anywhere access while we’re at it:

cd /etc/sysconfig
sed -i 's/10000:20000 -j ACCEPT/&\\n-A INPUT -p tcp -m tcp --dport 8080 -j ACCEPT/' iptables
sed -i 's/10000:20000 -j ACCEPT/&\\n-A INPUT -p tcp -m tcp --dport 80 -j ACCEPT/' iptables
sed -i 's/10000:20000 -j ACCEPT/&\\n-A INPUT -p tcp -m tcp --dport 2267 -j ACCEPT/' iptables
iptables-restart

Be sure to test all three access methods to verify that you haven’t left a security hole.

Keeping FreePBX 15 Modules Current

We strongly recommend that you periodically update all of your FreePBX modules to eliminate bugs and to reduce security vulnerabilities. From the Linux CLI, log into your server as root and issue the following commands:

rm -f /tmp/*
fwconsole ma upgradeall
fwconsole reload
/root/sig-fix
systemctl restart apache2
/root/sig-fix

Special Thanks: We want to give an extra special tip of the hat to the VoIP-Info Forum members who assisted in working the kinks out of the Incredible PBX PUBLIC offering. We also wish to thank JavaPipe LLC for a number of DDOS tips and tricks in securing CentOS 7 with IPtables.

Originally published: Monday, December 30, 2019    Updated: Monday, September 28. 2020



Need help with Asterisk? Visit the VoIP-info Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Free Cellular Service in the U.S. & Canada Returns

We’re a few months late to the party but, if Covid-19 has put a kink in your cellular budget or if you have young kids that could use a cellphone with unlimited calling and texting on the Sprint® network at zero cost in the U.S. and Canada, then your prayers have been answered. All you need is a CDMA phone and a $10 SIM card from TextNow. Better yet, you can purchase one of their refurbished iPhones or Android phones, and you’re off to the races. Their compatible web app with 200+ million downloads lets you make calls and send text messages from your favorite desktop computer or tablet. Special thanks to @Hometech for this tip.

What’s the Catch? The free tier is ad-supported so you’ll get a few ads. But, other than that, unlimited calling and texting throughout the U.S. and Canada are free whether you’re on WiFi or on Sprint’s nationwide network. If the ads are bothersome, you can always move up to the $10/month ad-free platform which also gets you voicemail transcription. There’s even free data service albeit on Sprint’s 2G network. But it’s perfectly suited for email. Yes, we’re aware of Sprint’s terrible coverage in some areas, but hopefully this will improve with the T-Mobile merger. Much like Google Fi, the TextNow design supports WiFi wherever it’s available. You can’t beat the price, and no credit card is required to sign up. So what are you waiting for?

Referral Code Saves $20. TextNow no longer offers referral codes or affiliate links, and we don’t have one. But here’s a link to some existing coupons that will save you $20 if you decide to purchase a phone from them.



Free Features: In addition to a free phone number and unlimited calling and texting to U.S. and Canadian numbers, TextNow offers conference calling, voicemail, and group texting. Calling and texting via the web app or platform-specific applications is just as intuitive and powerful as using a cellphone. In fact, you can set things up on your existing phone while you’re waiting on your TextNOW SIM card or smartphone to arrive. Come join the party!


Originally published: Friday, May 22, 2020



Need help with Asterisk? Visit the VoIP-info Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




2019 Technology RoundUp: What’s Hot and What’s Not


As 2019 comes to a close, we wanted to pause briefly and share some of our discoveries from this past year on all things tech. More specifically, let’s chat about solar, electric vehicles, cutting the cord from cable TV, streaming services including music and video, and cellphone data plans. We hope some of you will chime in and share your own discoveries from 2019. We’ll also apologize in advance if some of this discussion is U.S.-centric. It just happens to be our home turf.

What Are You Waiting For: GO SOLAR!



Let me begin by noting that the average electric bill on our 4,000+ square foot home with four heat pumps, two electric water heaters, and three pool pumps typically ran $500 a month prior to 2018. After installation of 50 solar panels on our roof, our average electric bill for the first six months of 2019 was about $10 a month. Installation cost of the system was about $60,000, but there was a 30% tax credit from the feds and a 25% tax credit (spread over six years) from South Carolina which reduced the actual out-of-pocket cost to about $30,000.




If you’re new to solar, be advised that most states have given utility companies a monopoly on electricity which means your local energy company makes the rules on how many solar panels you can install and remain connected to the grid. In the case of South Carolina, you cannot generate more electricity than you actually use in a year, but, for energy you generate, the South Carolina model is they pay you the same rate they charge for electricity. Given our current annual cost of $1,000 versus $6,000 in the good old days, our best estimate is the break-even date will be about six years from installation date. After that, it’s a $5,000 a year gravy train with solar. Coupling these utility savings with a nearly 70% reduction in our property taxes moving from Atlanta, Georgia to Charleston, we can no longer afford to move despite the fact that a few South Carolina residents still are fighting the Civil War.

What Are You Waiting For: GO ELECTRIC!

Some of you may have followed our love-hate relationship with Tesla during 2017 and 2018. Sorry to say that Elon Musk is his own worst enemy when it comes to promising far more than he can actually deliver. As much as we loved Tesla, we parted ways when a sloppy repair job totally crippled the car in the middle of nowhere leaving us hanging for over a month while Tesla attempted to diagnose the cause. It turned out they had bent a pin in replacing the big screen in the car, and it shorted out almost every function in the vehicle. The lack of a local service center coupled with the obvious shortcomings in diagnosing a system fault in the vehicle caused us to move on. HINT: Don’t fly to Mars with Elon. Tesla never came close on Elon’s full self-driving (FSD), and they still appear to be years away. We’ve joined the lawsuit to recover our FSD purchase. That and $5 will get you a cup of coffee at Starbucks.





Despite Tesla’s shortcomings, we didn’t give up on electric vehicles and purchased the First Edition of Jaguar’s I-Pace. What a difference a quality interior makes! The I-Pace is fairly comparable to the Tesla Model S in price, performance, and range. While not as refined as Tesla’s current AutoPilot, Jaguar’s Lane Keeping Assist is extremely reliable in highway driving and more than adequate on well-marked roads in town. Our only real complaint is the lack of a charging network comparable to Tesla’s in the southeastern United States. But Volkswagen’s new Electrify America coupled with ChargePoint looks promising for 2020.

If you’re not a car nut (like us) and just want reliable transportation at a reasonable cost to get back and forth to work and for around-town driving, an electric vehicle will save you a lot of money. You really can’t beat a Nissan Leaf for about $30,000. For a few cents more, you can extend the range to over 200 miles, and you can add Lane Keeping Assist that is almost as good as a Tesla. Add a 240v NEMA 1450 outlet in your garage for about $500, and you can add about 20 miles of range for every hour of charge at a fraction of the cost of gasoline. You also can get the car serviced at any local Nissan dealership, and most also provide free charging. 50 kWh commercial DC quick chargers can provide an 80% charge in less than an hour.

What Are You Waiting For: CUT THE CORD!

Comcast reportedly lost a quarter million TV subscribers in both Q2 and Q3 of 2019. AT&T has lost five million subscribers to DirecTV and U-Verse since 2016. Price gouging finally has led millions of cable and satellite TV subscribers to cut the cord and say enough is enough. If you haven’t tried the 2019 edition of yesteryear’s TV rabbit ears and you live in an area with local TV stations within a 50-75 mile radius of your home, you’re in for quite a surprise. Over-the-air (OTA) HDTV broadcasts now are actually comparable or better than Comcast and DirecTV.

Did we mention all over-the-air HDTV broadcasts are free?

Choosing an HDTV Antenna. As you might have guessed, antennas come in all shapes and sizes. An outside antenna is light-years better than any indoor model but, if you live in an apartment where an outside antenna isn’t feasible, then visit your local WalMart and purchase three or four inside HDTV antennas of various shapes and sizes including some HDTV rabbit ears. Bring them all home and try the various antennas with a TV to see which provides the best reception and most stations. Take the others back for a refund. In almost all cases, we’ve found the HDTV rabbit ears (under $10) work as well as the more expensive models which can range in price between $8 and $50. Our favorite outdoor antenna is the Clearstream 4 for under $100 from WalMart. Old-timers will be pleased to know that the days of snowy pictures and ghost images are a thing of the past with HDTV.



Recording Shows. If all you care about is watching local TV stations (commercials and all), then you can stop reading here. But if you like time shifting and skipping commercials, then a TiVo OTA DVR is the best game in town. TiVo is proud of their service and loves to charge a $15 monthly fee for access on top of the $200+ cost of the device. But our favorite is a $350 refurbished TiVo Roamio from Amazon that includes a lifetime subscription at no additional cost. If you’re worried about the reliability of a refurbished product, you can buy the Amazon 3-year protection plan for $33.99. We did. Once you use a TiVo unit with automatic skipping of commercials, you’ll rarely watch live TV broadcasts again. It’s that good.

Streaming TiVo Content to Other Devices. One nifty addition for your TiVO OTA unit is the ability to stream the content to devices other than the TV to which the TiVo unit is connected. The trick is to find a TiVo Stream device (about $150). It requires a wired Internet connection on the same subnet as your wired TiVo Roamio OTA unit. Once you have the unit in hand, contact TiVo with the serial number of your TiVo stream unit, and they will activate it. You then can stream any of your TiVo live or recorded content to up to four iPhones, iPads, and Android devices simultaneously. The streaming works on both your local WiFi network as well as any remote location using either WiFi or cellular service. Very slick!

Alternative Streaming Options. Another streaming alternative worth considering is TabloTV. The units start at $150 and are available at WalMart, Best Buy, and Amazon. You then add your own USB storage device and antenna. Finally, you need a subscription for the TabloTV Guide. The lifetime subscription is $150. The device can stream to computers using a web browser, iOS and Android phones and tablets as well as Roku devices and TVs. Our results with TabloTV have been hit and miss. On the same network as our TiVo machine, the TabloTV WiFi streams regularly experience pauses and drop-outs while the TiVo streams rarely do. Whether you choose a TabloTV or not, be sure to sign up for email delivery of their newsletter. It’s by far the best in the cut-the-cord industry.

Supplementing Local Content. Cut-the-cord commercial streaming services are booming as you might imagine. These services provide streaming content of what was traditional cable TV programming including local and cable news channels, sports channels, and commercial add-ons such as HBO and ShowTime. These streaming services typically support web access via a browser as well as iOS, Android, and Roku devices and smart TVs. Our current favorite is YouTube TV which offers 70+ channels for $50 a month with a free trial. Assuming you have a decent Internet connection, you’ll never return to Comcast or DirecTV after YouTube TV.

Got a Kid in College? Paying college tuition and expenses is one of the most painful periods for many families, but there’s a silver lining. Your student qualifies for unlimited music streaming plus a Hulu subscription plus a ShowTime subscription, and you get all three for only $5 a month by setting up a student Spotify account. Your first 3 months are free, and it’s renewable for up to 4 years. There’s more good news. Parents can share the credentials in a different location because the hours of your listening and viewing will rarely, if ever, coincide with those of your college son or daughter.

The Granddaddy of Streaming.Services If you only can choose one, the streaming service that most folks probably will not want to live without is Netflix. Your first 30 days are free, and plans start at $8.99 a month. That gets you one simultaneous, non-HD stream to a device of your choice. You can move up to HD streaming for $12.99 for a single stream or $14.99 for simultaneous streams to four devices. Smart TVs, computers, tablets, phones, and Roku devices are all supported. If you happen to have rental property, next to WiFi, Netflix always ranks at the top of the list of most requested amenities.

Our Must-Have Traveling Companion. The Roku Streaming Stick+ may just be the best under $50 purchase you ever make. Whether you travel or just have older not-so-smart televisions at home, so long as you have access to an HDMI port, all of your streaming services are just a click away on any TV. The only setup required when you reach your destination is plugging in your WiFi credentials. Then Netflix, Hulu, ShowTime, Comcast, Spectrum, and TabloTV immediately come to life.

Best Cellphone Plan on the Planet. If T-Mobile is supported in your neck of the woods, you won’t want to miss MintMobile, the best cellphone plan on the planet. You always get unlimited U.S. calling and messaging, and then you can choose the amount of monthly 4G LTE data you need. For the first three months, you get 12GB of monthly 4G LTE data for only $15 a month. After that, you can sign up for an annual plan at their standard 3-month rates: $15 a month for 3GB, $20 a month for 8GB, or $25 a month for 12GB. It’s an unbelievable deal compared to the Bell Sisters. Use our signup link to share the wealth with the Nerd Vittles staff. Merry Christmas to all.

Originally published: Monday, December 23, 2019




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Cell Phone Tips for Spring Break and International Travel

With Spring Break upon us and Summer Vacations just around the corner, we wanted to briefly review some of your cellphone and data options for those that might be planning a trip outside the United States. If you’re only going as far as Mexico, Canada, or the U.S. Virgin Islands, then your existing cellular provider in the U.S. may have you covered at no additional cost. If your provider is not AT&T, then check with your carrier. And speaking of AT&T, if you’ll only be outside these covered areas for a brief time, then you may wish to consider enabling AT&T’s International Day Pass which costs you nothing until you use it. On days that you use it in over 100 countries, it’s $10/day with the same talk, text, and data options you currently have in the U.S. No, it’s not a bargain for a 60-day vacation, but it’s a pretty good deal for a week or so when you only need cell service for a few days. No changes in your current AT&T plan are necessary other than enabling the International Day Pass feature. Click on the Get Started Link to enable the service. Be sure to read the fine print.

Once you get past the options in the first paragraph, most of the other economical choices for cell phone and data coverage internationally involve swapping out the SIM card in your phone with a country-specific SIM card from a local provider. The first step is to make absolutely certain that your cell phone is unlocked before you hop on a plane. The procedure varies with different providers so you’ll need to investigate what steps are required. Be sure to also decipher how to verify that your phone is unlocked. Again, with AT&T, it’s a simple matter of visiting their web site and filling out a form. Within 24 hours, you should be good to go.

Now comes the hard part, choosing an alternate provider meeting your travel requirements. This turns on a number of factors such as whether callers in the U.S. need to contact you using a U.S. phone number. If so, then the first paragraph is your best bet if you need to be reached on your existing phone number. If any U.S. phone number will suffice (and you can always forward your cellphone number to this new number), then using an Android phone or iPhone, there’s an easy solution if you have Wi-Fi access or some cellphone data to burn. Simply use a Google Voice phone number and associate it with the new Android or iPhone Google Voice app on your phone. Be sure to enable WiFi/Mobile Data calling in GV Settings, and you’re good to go with almost any smart phone with 4G service. With Wi-Fi, no SIM card is required. Just put your phone in Airplane Mode and enjoy free calling back to the U.S. and Canada.

The next issue to consider is whether you need to make frequent calls or send frequent text messages to those in the U.S. while you are away. If so, then the best choice we’ve found without Wi-Fi access is Orange Holiday Europe.1 Simply buy the $50 card and put it in your cellphone on the day you wish to begin your service. It buys you 10GB of data, 2 hours of calls, and 1000 text messages to almost any phone in the world from 30 European countries including the U.K. Once activated, the card is good for 14 days and includes tethering. It can be renewed for an additional 21.70€ (about $25) which adds another 14 days with an additional 10GB of data, 120 minutes of calls, and another 1,000 SMS messages.

If the phone number of your calls doesn’t matter and you can also take advantage of Google Voice for free calling to and from the U.S., then all you really need is the cheapest SIM card you can find in the country you’re visiting. One word of advice from our frequent traveler friends is don’t buy the SIM card in the airport where they typically are two to five times as expensive. To give you an example, a SIM card with 5GB of data in Madrid can be had for about 10€ per week. For iPhone users, a more flexible SIM card that looked appealing to us was Gigsky which offers regional SIM cards for anywhere in the world. Enjoy your vacation!

Originally published: Monday, March 25, 2019




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




  1. Many of our purchase links refer users to Amazon when we find their prices are competitive for the recommended products. Nerd Vittles receives a small referral fee from Amazon to help cover the costs of our blog. We never recommend particular products solely to generate Amazon commissions. However, when pricing is comparable or availability is favorable, we support Amazon because Amazon supports us. []

FusionPBX on Steroids: Text-to-Speech Apps Have Arrived


SECURITY ALERT: https://securityboulevard.com/2019/06/rce-using-caller-id-multiple-vulnerabilities-in-fusionpbx/

And you thought you needed an Asterisk® PBX for your users to enjoy FREE text-to-speech applications such as current News Headlines and Weather reports from the convenience of their telephone. Well, move over Asterisk. FusionPBX™ for FreeSWITCH™ now offers virtually identical functionality with all of the terrific advantages that FusionPBX provides: reliability, updates, performance, security and an unmatched UC platform with no rivals. To get started, make sure you have completed the steps in our FusionPBX introductory tutorial.

Intuitive support in FusionPBX for interactive TTS or STT applications is not (yet) available. So we’re doing the next best thing. Once or more a day, we will use cron jobs to retrieve the latest News Headlines and Weather reports for your local area. Then anyone using your PBX can pick up a phone and listen to the News Headlines by dialing 951 or U.S. weather forecasts by dialing 947, or worldwide weather forecasts from ApiXU by dialing 949.1 We’ll be using IBM’s awesome TTS engine to handle the text-to-speech chores. We think you will agree that IBM’s offering is the best in the business. And you can’t beat the price. After your first free month, you get a million characters of FREE text-to-speech synthesis every month forever! For ApiXU worldwide weather data, your first 2,500 queries are also FREE every month.

Here’s a sample from the 3CX implementation of these identical applications:


[soundcloud url="https://api.soundcloud.com/tracks/364353344″ params="auto_play=false&hide_related=false&show_comments=true&show_user=true&show_reposts=false&visual=true" width="80%" height="350″ iframe="true" /]



Getting Started with IBM Bluemix TTS Service

NOV. 1 UPDATE: IBM has moved the goal posts effective December 1, 2018:

You can start your free, 30-day trial of IBM Bluemix services without providing a credit card. Just sign up here. Once your account is activated, here’s how to obtain credentials for the TTS service to use with FusionPBX. Start by logging in to your IBM Bluemix account. Once you’re logged in, click on your account name (1) in the upper right corner of your web page to reveal the pull-down to select your Region, Organization, and Space. Follow the blue links at the bottom of the pull-down menu to create an Organization and Space for your TTS service.



Next, click the Menu icon which is displayed as three horizontal bars on the left side of the web page. Choose Watson. Click Create Watson Service and select Text to Speech from the applications listing. Watson will generate a new TTS service template and display it. Make certain that your Region, Organization, and Space are shown correctly. Then verify that the Standard Pricing Plan is selected. When everything is correct, click the Create button.

When your Text to Speech application displays, click Service Credentials and then click New Credential (+). When the Add New Credential dialog appears, leave the default settings as they are and click Add. Your Credentials Listing then will appear. Click View Credentials beside the new entry you just created. Write down your URL, username, and password. You’ll need these in Step #4 below to configure the IBM Bluemix TTS service. Logout of the IBM Cloud by clicking on the little face in the upper right corner of your browser window and choose Log Out. Confirm that you do, indeed, wish to log out.

Getting Started with ApiXU Weather

Finding free worldwide weather forecasts has been a difficult nut to crack. So we’re pleased to introduce ApiXU. Your first 5,000 API calls every month are free, but our Worldwide Weather application for FusionPBX actually makes two API calls to retrieve the latest weather conditions AND the weather forecast. What that means is you can make 2,500 free queries a month with the Nerd Vittles application. One or two a day should suffice. While the U.S. weather reports are retrieved by ZIP code, the ApiXU queries are retrieved by city. So long as you don’t choose small towns, the city names should be sufficiently unique to work well with the WorldWide Weather application. HINT: Nicosia in Cyprus (home of 3CX) works great! 😉




Before you can obtain worldwide weather reports, you’ll need to sign up for an account at ApiXU.com. Once you’re registered, log into your account and copy down your API Key. You’ll need it in a minute.

5 Steps to TTS Paradise with FusionPBX

Once you have your IBM TTS credentials in hand, there are only five simple steps to get everything set up for TTS application support on FusionPBX. When we’re finished, anyone on your PBX can pick up a phone and listen to the News Headlines by dialing 951, a U.S. Weather Forecast by dialing 947, or Worldwide Weather for most international cities by dialing 949.

  1. Download WAV file placeholders to FusionPBX
  2. Set up TTS Extensions in FusionPBX
  3. Install the Linux components to support TTS Applications
  4. Insert IBM and ApiXU Credentials, Email Address and Weather Locations
  5. Run the News Headlines and Weather Update Scripts

1. Downloading WAV File Placeholders

Login to your FusionPBX server as root using SSH or Putty. Change to /var/lib/freeswitch/recordings directory. List its contents to decipher the names of any subdirectories that have been created for your various FusionPBX domains. Change to each subdirectory under /var/lib/freeswitch/recordings and issue the following commands to install the TTS placeholders:

wget http://incrediblepbx.com/freeswitch/placeholders.tar.gz
tar zxvf placeholders.tar.gz
rm -f placeholders.tar.gz

IMPORTANT: Once you’ve copied the placeholders into position, use a browser to open the FusionPBX Dashboard for each of your domains. Navigate to Apps then Recordings and play each of the three placeholder files that were uploaded: News-update, Weather-forecast, and Weather-zip. Otherwise, they won’t be available for use in the next step of the setup.

2. Setting Up TTS Apps in FusionPBX

Before you can implement the Nerd Vittles TTS Apps for News Headlines, Weather by ZIP Code, and Worldwide Weather, we first need to create the proper environment on the FusionPBX side to support the new applications. We’ll be using the FusionPBX Dialplan Manager for this purpose. We need to set up three extensions to handle the calls: one for the News Headlines and one for each of the Weather applications.

Login to your FusionPBX Dashboard with a browser.

News Headlines: From the FusionPBX Dashboard, navigate to DialPlan, then Dialplan Manager, and click the Add (+) icon. Using your default Context, insert the following new entry into the Dialplan for News Headlines (951) by filling in the Name, Condition1, Action1, and Description fields as shown below. Leave the other defaults. Then click SAVE.



When the Dialplan listing reappears, find the NewsHeadlines entry in the list and click the pencil icon to Edit the entry. Add 951 in the Number field as shown below. Then click SAVE and BACK.



Now let’s add the Dialplan entries to support the two Weather applications.

Weather by ZIP Code: From the FusionPBX Dashboard, navigate to DialPlan, then Dialplan Manager, and click the Add (+) icon. Using your default Context, insert the following new entry into the Dialplan for Weather by ZIP Code (947) by filling in the Name, Condition1, Action1, and Description fields as shown below. Leave the other defaults. Then click SAVE.



When the Dialplan listing reappears, find the WeatherZIP entry in the list and click the pencil icon to Edit the entry. Add 947 in the Number field as shown below. Then click SAVE and BACK.



Worldwide Weather: From the FusionPBX Dashboard, navigate to DialPlan, then Dialplan Manager, and click the Add (+) icon. Using your default Context, insert the following new entry into the Dialplan for Worldwide Weather (949) by filling in the Name, Condition1, Action1, and Description fields as shown below. Leave the other defaults. Then click SAVE.



When the Dialplan listing reappears, find the WorldwideWeather entry in the list and click the pencil icon to Edit the entry. Add 949 in the Number field as shown below. Then click SAVE and BACK.



Try things out by dialing 947, 949, and 951 from any FusionPBX extension. Be sure these work before proceeding!

3. Installing Linux Components for TTS

First, we need to get the missing pieces in place to support TTS applications using IBM Bluemix TTS and the Nerd Vittles scripts. We want to add PHP support from the Linux CLI only so there will be no security issues. And we want to add support for SQLite 3 so we can look up latitude and longitude data for U.S. zip codes. Just issue the following commands to get everything set up:

apt-get update
apt-get -y install php-fpm php-curl php-cli php-pear php-db php-gd sqlite3 libsqlite3-dev
apt-get -y install sox lame libsox-fmt-mp3
sed -i 's|;cgi.fix_pathinfo=1|cgi.fix_pathinfo=0|' /etc/php/7.1/fpm/php.ini
systemctl restart php7.1-fpm

Next, we need to put the Nerd Vittles scripts and ZIP code database for SQLite 3 in place:

cd /
wget http://incrediblepbx.com/freeswitch/fusionpbx-tts-linux.tar.gz
tar zxvf fusionpbx-tts-linux.tar.gz
rm -f fusionpbx-tts-linux.tar.gz

Finally, we need to add cron jobs to run the three update scripts at least once a day. You can run them more often depending upon your needs. We have these configured to run at 6:15 am and 6:20 am every day. Adjust to meet your own requirements. On a busy PBX, you probably don’t want to run them during the workday.

echo "15 6 * * * root /root/nv-weather-update.sh >/dev/null 2>&1" >> /etc/crontab
echo "20 6 * * * root /root/nv-news-update.sh >/dev/null 2>&1" >> /etc/crontab
echo "25 6 * * * root /root/nv-wwweather-update.sh >/dev/null 2>&1" >> /etc/crontab

4. Adding TTS Credentials to FusionPBX

Now we need to add your IBM TTS and ApiXU credentials, email address, a local ZIP code for Weather by ZIP code reports, and a city for Worldwide Weather reports. Edit the credentials file and save it with your information:

cd /root
nano -w ibm-credentials.php

5. Running the News & Weather Update Scripts

Finally, we need to run the News Headlines and two Weather update scripts once to put current data in place for FusionPBX callers. After the initial setup, the cron jobs will update the News Headlines and Weather reports every day moving forward. Press ENTER as each of the scripts finishes to get back to a command prompt.

cd /root
./nv-news-update.sh
./nv-weather-update.sh
./nv-wwweather-update.sh

Taking the News & Weather Apps for a Spin

Now you’re ready to try things out. From any phone connected to your PBX, dial 951 for current News Headlines. Then dial 947 for a local Weather Report matching your zip code. Finally, dial 949 to retrieve a worldwide weather forecast for most international cities.

If you don’t yet have a FusionPBX server set up but would like to sample the voice quality of the TTS applications running on our FusionPBX server in New York, here are several ways to try them out using an IVR we set up using an IBM voice prompt from last week’s tutorial. Airport codes reflect (PROVIDER LOCATION-SERVER LOCATION-DID LOCATION).

  • Skyetel DID: 843-970-9997 (SEA-BUF-CHS)
  • Vitelity DID: 646-666-5997 (DEN-BUF-NYC)
  • VoIPms DID: 843-606-0444 (ATL-BUF-CHS)
  • Free iNUM Call: 883510009901997 (ATL-BUF-ATL)
  • Free SIP Call: 883510009901997@sip.inum.net (ATL-BUF-ATL)

Originally published: Monday, September 24, 2018


Support Issues. With any application as sophisticated as this one, you’re bound to have questions. Blog comments are a terrible place to handle support issues although we welcome general comments about our articles and software. If you have particular support issues, we encourage you to get actively involved in the PBX in a Flash Forums. It’s the best Asterisk tech support site in the business, and it’s all free! Please have a look and post your support questions there. Unlike some forums, ours is extremely friendly and is supported by literally hundreds of gurus and thousands of users just like you. You won’t have to wait long for an answer to your question.



Need help with Asterisk? Visit the PBX in a Flash Forum.




Special Thanks to Our Generous Sponsors


FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!


Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.




Some Recent Nerd Vittles Articles of Interest…

  1. The included applications are licensed pursuant to GPL2 with the exception of nv-worldwide-weather.php which is licensed pursuant to The MIT License. Terms and conditions of both licenses are included in /root/COPYING. []
