The Gotcha-Free PBX: Incredible PBX for Asterisk-GUI Application User’s Guide

For those just beginning the Incredible PBX™ for Asterisk-GUI adventure, start here. Once your system is up and running, you’ll be ready to kick the tires. And today we’ll cover the applications for Asterisk® that are included in Incredible PBX for Asterisk-GUI. Down the road a bit, we’ll provide an in-depth review of the Incredible PBX internals and how to tweak things under the covers to get the most out of Incredible PBX for Asterisk-GUI. We’re not planning to provide an Asterisk-GUI User’s Guide because a number of them already have been written. That doesn’t mean it’s not important. See last week’s homework assignment for the links. If you have questions, by all means post them on the PIAF Forum for some quick help.

If you’ve always loved Baskin-Robbins’ 31 Flavors of ice cream, then you’re in for a treat today with our special scoop.

Here’s our Table of Contents to the 31 Incredible PBX Applications for Asterisk-GUI with hotlinks plus some bonus apps for those that are still awake at the end of today’s adventure. You may want to print this for future reference.

  1. Checking System Status
  2. Enabling Speech Recognition
  3. Wolfram Alpha for Siri-like queries by phone*
  4. Automatic Update Utility
  5. Asterisk 11 Upgrade Utility
  6. Apache Authentication for Apps
  7. IPtables Firewall WhiteList
  8. PortKnocker Remote Access
  9. Travelin’ Man 4 Remote Access by Phone
  10. Conference Bridge
  11. CallerID Name (CNAM) Lookups
  12. Faxing with Incredible PBX
  13. Voicemail 101 with Incredible PBX
  14. Email Delivery of MP3 Voicemails
  15. Reconfiguring SendMail for SmartHosts
  16. SMS Blasting with Google Voice
  17. SMS Voice Messaging with Google Voice*
  18. SMS Messaging with VoIP.ms
  19. SIP URI Calling with Speed Dials
  20. IVR Demo of Incredible PBX Applications*
  21. Backup and Restore Options
  22. AsteriDex – The Poor Man’s Rolodex®
  23. Voice Dialing with AsteriDex*
  24. Speed Dialing with AsteriDex
  25. Scheduling Reminders by Phone or Web
  26. DISA Access with Incredible PBX
  27. Yahoo! News Headlines
  28. Weather Forecasts with Incredible PBX*
  29. ODBC Application Support
  30. Today in History
  31. Time of Day
  32. Harnessing SIP URIs for Free Worldwide Calling

* Requires Voice Recognition implementation. See #2 above.

1. Checking Current Status of Incredible PBX

There are several ways to check the status of your server. First, log into your server as root and type: status or pbxstatus

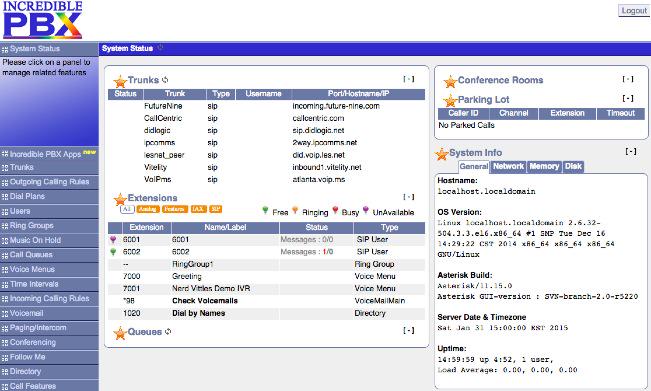

The second option is to use a browser to access your server. Choose the Admin menu. Then click Asterisk-GUI Administration. Once you log in, the System Status of your server, trunks, and extensions will be displayed.

Finally, with your browser, choose the Admin menu. Click System Information to bring up the terrific SysInfo application that’s included in Incredible PBX.

2. Adding Speech Recognition to Incredible PBX for Asterisk-GUI

Google changed the licensing of their speech recognition engine last year and now restricts use to "personal and development use." Assuming you qualify, the very first order of business is to enable speech recognition for your new PBX. Once enabled, the Incredible PBX feature set grows exponentially. You’ll have access to the Voice Dialer for AsteriDex, Worldwide Weather Reports where you can say the name of a city and state or province to get a weather forecast for almost anywhere, Wolfram Alpha for a Siri-like encyclopedia for your PBX, and Lefteris Zafiris’ speech recognition software to build additional Asterisk apps limited only by your imagination.

Here’s how to activate speech recognition on Incredible PBX. Don’t skip any steps!

1. Using an existing Google/Gmail account, you first must join the Chrome-Dev Group.

2. Using the same account, create a new Speech Recognition Project.

3. Click on your newly created project and choose APIs & auth.

4. Turn ON the Speech API by clicking on its Status button in the far right margin. HINT: If you forgot to complete Step #1, the Speech API option will be missing!

5. Click on Credentials in APIs & auth and choose Create New Key -> Server key. Leave the IP address restriction blank!

6. Write down your new API key or copy it to the clipboard.

7. Log into your server as root and issue the following command:

nano -w /var/lib/asterisk/agi-bin/speech-recog.agi

8. When the nano editor opens, go to line 70 of speech-recog.agi: my $key = "". Insert your API key from Step #6 above between the quotation marks and save the file: Ctrl-X, Y, then Enter.

Congratulations! Speech recognition is now available with Incredible PBX applications for Asterisk-GUI.

3. Using Wolfram Alpha with Incredible PBX for Asterisk-GUI

Ever wished your Asterisk server could harness the power of a 10,000 CPU Supercomputer to answer virtually any question you can dream up about the world we live in? Well, so long as it’s for non-commercial use, today’s your lucky day. Apple demonstrated with Siri™ just how amazing this technology can be by coupling Wolfram Alpha® to a speech-to-text engine on the iPhone. Now you can do much the same thing using voice recognition on the Incredible PBX for Asterisk-GUI.

Before using Wolfram Alpha from any phone connected to your PBX, you first must configure it by obtaining and adding a Wolfram Alpha application ID to Incredible PBX. Here are the simple steps:

1. Obtain your free Wolfram Alpha APP-ID here.

2. Log into your server as root and issue the following command:

nano -w /var/lib/asterisk/agi-bin/4747

3. When the nano editor opens, the top line of the file will look like this:


4. Replace the text between the quotes with your APP_ID key from Step #1 above. Then save the file: Ctrl-X, Y, then Enter.

To use Wolfram Alpha, dial 4747 (that’s S-I-R-I backwards) from any extension.

Here are some sample queries to get you started:

Weather in Charleston South Carolina
Weather forecast for Washington D.C.
Next solar eclipse
Otis Redding
Define politician
Who won the 1969 Superbowl? (Broadway Joe)
What planes are flying overhead now?
Ham and cheese sandwich (nutritional information)
Holidays 2015 (summary of all holidays for 2015 with dates and DOW)
Medical University of South Carolina (history of MUSC)
Star Trek (show history, air dates, number of episodes, and more)
Apollo 11 (everything you ever wanted to know)
Cheapest Toaster (brand and price)
Battle of Gettysburg (sad day 🙂 )
Daylight Savings Time 2015 (date ranges and how to set your clocks)
Tablets by Samsung (pricing, models, and specs)
Doughnut (you don’t wanna know)
Snickers bar (ditto)
Weather (local weather at your server’s location)

4. Automatic Update Utility for Incredible PBX for Asterisk-GUI

A key security component of Incredible PBX is its Automatic Update Utility. Each time you log into your server as root, the Automatic Update Utility is run. It installs the latest fixes and security patches for your server. Don’t disable it! In fact, don’t delete anything from the /root folder. You’ll need all of it sooner or later.

We recommend you log into your server as root at least once a week to keep your server current. Ditto for the web interface to Incredible PBX. Insofar as security is concerned, we make a best effort to keep the components of Incredible PBX up to date. The Linux operating system was installed by you before the Incredible PBX install began. That’s a nice way of saying Linux security is primarily your responsibility. When an egregious Linux vulnerability comes along that we know about, we will try to notify you of the issue on the PIAF Forum and on the RSS Feed that is part of the Incredible PBX web GUI. Check the RSS Feed on the web GUI at least once a week as well. As a condition of use of the free Incredible PBX for Asterisk-GUI product, you accepted ultimate responsibility for the security and reliability of your server. None of this discussion changes any of that.

5. Asterisk 11 Upgrade Utility for Incredible PBX for Asterisk-GUI

We’ve included a script to upgrade Asterisk 11 to the latest version whenever you feel the urge. Before beginning the upgrade, log into your server as root using SSH and maximize the window. Otherwise, Asterisk may not compile properly. Then run the script: /root/upgrade-asterisk-to-current

6. Implementing Apache Authentication with Incredible PBX for Asterisk-GUI

With the exception of Asterisk-GUI and WebMin, all web-based applications included in Incredible PBX (including your trunk setups!) require successful Apache authentication to gain access. When you installed Incredible PBX, you should have created an admin account. If not, issue the following command using a secure password after logging in as root:

htpasswd -b /etc/pbx/wwwpasswd admin newpassword

With the exception of AsteriDex and Reminders, you gain access to other Incredible PBX applications with the admin Apache account. For the remaining apps, you may wish to (but don’t have to) assign different account names and passwords to various departments in your organization. To set up these accounts, use the syntax above substituting the name of the department for "admin" and the department password for "newpassword."

7. Managing the IPtables Linux Firewall and WhiteList

As installed, Incredible PBX for Asterisk-GUI includes a preconfigured, locked-down Linux firewall that restricts incoming IPv6 traffic to localhost and, via a WhiteList, limits incoming IPv4 traffic to your server’s public and private IP addresses, your desktop computer’s IP address (that was used for the install), private LAN and NeoRouter VPN traffic, and a collection of our favorite SIP providers. You can WhiteList additional IP addresses for additional providers or for SIP and IAX phones located outside your firewall. The following firewall management scripts are mostly installed in the /root directory:

  • ./add-ip — WhiteList an additional IP address or IP address range (CIDR)
  • ./add-fqdn — WhiteList a site using a fully-qualified domain name (FQDN)
  • ./del-acct — Remove previously designated entry from the WhiteList
  • ./ipchecker — Check whether specified FQDNs have changed & update IPtables
  • iptables-restart — Used exclusively to restart IPtables and test for failed FQDNs
  • iptables -nL — Check the current status of your IPtables firewall

IPtables can be manually configured (if you know what you’re doing) by editing iptables and ip6tables in /etc/sysconfig (CentOS) or rules.v4 and rules.v6 in /etc/iptables (Debian/Ubuntu). NEVER use traditional iptables commands such as iptables save to update your IPtables configuration, or you will permanently delete all of your FQDN entries! Instead, edit the files directly and then restart IPtables using iptables-restart. This protects the FQDN entries in your setup while also checking for invalid FQDN entries and removing them temporarily so that IPtables will successfully restart. If you use service iptables restart to restart IPtables and there happens to be an FQDN entry for a host that is either down or has disappeared, IPtables will fail to restart and your server will be left with NO firewall protection! The reason for this is the IPtables design which converts all FQDN entries to fixed IP addresses when it starts up. It’s also the reason we have to periodically check for changed FQDN entries using the ipchecker script with cron. For this to work properly, you will need to manually add your FQDN setups to the top of /etc/ipchecker by inserting the filenames of any add-fqdn entries you have created. For additional details, read our Travelin’ Man 3 tutorial.

8. PortKnocker Remote Access to Incredible PBX for Asterisk-GUI

IPtables is a powerful firewall that keeps the bad guys out. It also will keep legitimate users (including you) from gaining remote access to your server unless you had the forethought to WhiteList your remote IP address before you left on that family vacation. Unfortunately, you don’t always know your IP address in advance. And dynamic IP addresses assigned with hotel WiFi frequently change. To address this problem, Incredible PBX for Asterisk-GUI includes a preconfigured PortKnocker utility. This lets you send three secret "knocks" on random TCP ports to your server to tell it to let you in temporarily (until IPtables is again restarted).

For PortKnocker to work, you obviously need to know the secret knocks. You’ll find them in /root/knock.FAQ. Record them in your wallet or inside your suitcase for that rainy day! There are PortKnocker apps for almost all smartphones as well as for Windows, Mac, and Linux computers. Install your favorite AND test access before you leave town.

Finally, be aware that PortKnocker does not need any special access to your server to work; however, if your server is behind a hardware-based firewall, then you must map the three PortKnocker TCP ports to the private IP address of your server, or the knocks obviously will never get delivered to your server.

Review our PortKnocker tutorial for additional configuration tips.

9. Travelin’ Man 4 Remote Access to Incredible PBX for Asterisk-GUI (Dial TM4)

In addition to PortKnocker, Incredible PBX also includes a telephone-based solution to temporarily gain remote access to your server. This does require a bit of preplanning since you must create account credentials for the person to whom you wish to give remote access via a phone call. The complete tutorial for Travelin’ Man 4 is available on the PIAF Forum. All of the pieces already are in place on your server so skip down to the Configuration & Operation sections for details on implementation. The tutorial also covers the Administrator Utilities in /root/tm4 which let you set up remote user accounts.

10. Using the Conference Bridge in Incredible PBX (Dial C-O-N-F)

A new turnkey Asterisk 11 Conference Bridge has been added to Incredible PBX for Asterisk-GUI. A conference bridge allows a group of people to participate in a joint phone call. Typically, participants dial into a virtual meeting room from their own phone. This virtual meeting room supports dozens or even hundreds of participants depending upon server capacity.

You do not need a timing source for conferencing with Incredible PBX for Asterisk-GUI! Old-style Asterisk-GUI Conference Rooms which required a timing source are disabled.

To access the Conference Bridge, dial C-O-N-F (2663) from any phone connected to your server. Remote users can be added to a conference by providing a DID that points to an IVR which includes Conference Bridge access. Once connected to the conference bridge, a caller is prompted for the Conference Bridge PIN and his or her name. The user and admin passwords to access the Conference Bridge are randomized during the install.

To display Conference Bridge PINs, open Asterisk-GUI, choose Incredible PBX Apps, and click on Anveo Direct. The Miscellaneous Credentials Settings will all be displayed at the bottom of the screen including your Conference Bridge PINs.

To change Conference Bridge PINs, log into your server as root and edit the entries for CONF_USER_PIN and CONF_ADMIN_PIN: nano -w /etc/asterisk/credentials.conf. Then reload Asterisk: asterisk-reload.

11. CallerID Name (CNAM) Lookups with Incredible PBX for Asterisk-GUI

By default, Incredible PBX is configured to automatically provide OpenCNAM CallerID name lookups for the first ten calls received each hour. These lookups are only from cached entries in the OpenCNAM database; however, you can enable the commercial lookup service if desired. The cost is four tenths of a cent per successful query.

To enable the OpenCNAM Professional Tier, set up an account at OpenCNAM.com. Once you’ve obtained your credentials, edit the [cidlookup] context in /etc/asterisk/extensions_additional.conf. The second line includes this CURL command:


Add the following immediately after "incrediblepbx" replacing ACCOUNT_SID and AUTH_TOKEN with your actual credentials: &account_sid=ACCOUNT_SID&auth_token=AUTH_TOKEN

Finally, comment out the next 8 lines that begin with "exten => cidlookup_1,n" by inserting a semicolon at the start of each line. DO NOT comment out: exten => cidlookup_1,n,Return(). Save your changes and reload Asterisk: asterisk-reload.

;exten => cidlookup_1,n,Set(current_hour=${STRFTIME(,,%Y-%m-%d %H)})
;exten => cidlookup_1,n,Set(last_query_hour=${DB(cidlookup/opencnam_last_query_hour)})
;exten => cidlookup_1,n,Set(total_hourly_queries=${DB(cidlookup/opencnam_total_hourly_queries)})
;exten => cidlookup_1,n,ExecIf($["${last_query_hour}" != "${current_hour}"]?Set(DB(cidlookup/opencnam_total_hourly_queries)=0))
;exten => cidlookup_1,n,ExecIf($["${total_hourly_queries}" = ""]?Set(DB(cidlookup/opencnam_total_hourly_queries)=0))
;exten => cidlookup_1,n,Set(DB(cidlookup/opencnam_total_hourly_queries)=${MATH(${DB(cidlookup/opencnam_total_hourly_queries)}+1,i)})
;exten => cidlookup_1,n,ExecIf($[${DB(cidlookup/opencnam_total_hourly_queries)} >= 10]?System(${ASTVARLIBDIR}/bin/opencnam-alert.php))
;exten => cidlookup_1,n,Set(DB(cidlookup/opencnam_last_query_hour)=${current_hour})
exten => cidlookup_1,n,Return()

12. Faxing with Incredible PBX for Asterisk-GUI

If you added Incredible Fax to your server by running incrediblefax11-GUI.sh in the /root folder, then you’re in for a treat. As part of the install, you provided an email address for delivery of incoming faxes. That’s all the setup that is required to have incoming faxes sent to most of your DIDs delivered via SendMail in PDF format. The best way to figure out whether a particular provider supports fax technology on their DIDs is to send a test fax to yourself. FaxZERO lets you send 5 free faxes of up to 3 pages every day. Give it a whirl.

You also can send faxes using standard document types with the AvantFax web application. Log into AvantFax from the main Incredible PBX page by clicking on the AvantFax icon. Choose the Send a Fax option from the main menu, fill in the blanks, and attach your document. AvantFax uses the default dialplan documented in last week’s article so use the prefix desired to send the fax using your preferred provider. HINT: Google Voice does an excellent job with both incoming and outgoing faxes, and the calls are free in the U.S. and Canada.

Copies of all incoming faxes also are available for retrieval within AvantFax.

13. Voicemail 101 for Incredible PBX for Asterisk-GUI

Voicemail functionality is enabled on an extension-by-extension basis as part of the extension setup under the Users tab in Asterisk-GUI. Once enabled, you can set up your mailbox and retrieve your messages by dialing *98. You can leave a message for any extension without actually calling the extension. Just prepend * to any extension number before dialing, e.g. *6002. A number of the system settings for voicemail can be tweaked under the Voicemail tab in Asterisk-GUI. You also can automatically delete voicemails once they have been delivered by email under the Email Settings tab. Just follow your nose.

14. Email Delivery of MP3 Voicemails with Incredible PBX for Asterisk-GUI

Speaking of email delivery, your voicemails also can be delivered to any email address of your choosing. For every extension under the Users tab in Asterisk-GUI, simply add an Email Address in the Voicemail section of the form. With Incredible PBX, the voicemail message will be attached to the email in MP3 format so it’s suitable for playback with most email clients on desktop PCs, Macs, and smartphones. Be advised that some Internet service providers (such as Comcast) block downstream SMTP servers. You can check whether your outbound email is flowing by accessing WebMin (below) and choosing Servers -> SendMail Mail Server -> Mail Queue. If you find outbound mail is accumulating, then you’ll need to add your ISP’s SMTP server address as a SmartHost for SendMail as documented in the next section.

15. Reconfiguring SendMail for SmartHost SMTP Delivery Of Outgoing Emails

Many residential Internet service providers block downstream SMTP servers such as the SendMail server running with Incredible PBX for Asterisk-GUI. If you’re sending emails but they never arrive and you’ve checked your SPAM folder, then chances are your ISP is the culprit. The simple solution is to add your ISP’s SMTP server as a SmartHost for SendMail. This means outbound emails will be forwarded to your ISP for actual email transmission over the Internet. Here’s how. Edit /etc/mail/sendmail.cf and search for DS. Immediately after DS, add the FQDN of your ISP’s SMTP server, e.g. DSsmtp.comcrap.net (no spaces!). Save the file and then restart SendMail: service sendmail restart. Your email and voicemail messages with attachments should begin flowing without further delay.

Email from: Asterisk PBX asterisk@pbx.local...
"Nerd Vittles" at 8001234567 left a new voicemail message 1 for extension 6002 on Thursday, January 29, 2015 at 01:42:33 PM.

You can test email delivery by sending yourself a message from the Linux CLI:

echo "test" | mail -s testmessage yourname@somedomain.com

16. SMS Blasting with Google Voice and Incredible PBX for Asterisk-GUI

Out of the box, Incredible PBX supports SMS Message Blasting if you have a functioning Google Voice account set up. Before first use, you must add your credentials, address list, and text message to the SMS Blaster scripts in the /root folder.

In smsblast, insert your credentials:

MSGSUBJECT="Little League Alert"

In smslist.txt, insert one or more recipients for your message. These can be a combination of SMS addresses and email addresses and will be delivered accordingly.

NOTE: For most cellphone providers, you also can send an email message for SMS delivery by the provider. The complete list of providers is available here. Email messaging for SMS requires that you know the cellphone provider for your recipient while standard SMS messaging does not.

# In lieu of SMS number, email is also OK
8431234567 Doe John
mary@doe.com Doe Mary
8435551212@txt.att.net Mr T

In smsmsg.txt, enter the text message to be sent.

Once you have all three files configured, run the script: /root/smsblast.

17. Voice-Activated SMS Messaging with Incredible PBX (Dial S-M-S)

In addition to message blasting, you also can dial 767 from any extension and dictate an SMS message to send through your Google Voice account. When prompted for the destination, simply enter the 10-digit SMS number of the recipient.

18. SMS Messaging with VoIP.ms and Incredible PBX for Asterisk-GUI

Incredible PBX for Asterisk-GUI also supports SMS messaging through VoIP.ms if you have an account and an SMS-enabled DID. See the VoIP.ms wiki for setup info on the VoIP.ms side.

To install the VoIP.ms SMS scripts, follow these steps:

cd /root
mkdir sms-voip.ms
cd sms-voip.ms
wget http://incrediblepbx.com/voipms-SMS.tar.gz
tar zxvf voipms-SMS.tar.gz

Edit voipms-sms.php and insert your VoIP.ms number that supports SMS messaging (no spoofing allowed!):


Edit class.voipms.php and insert your VoIP.ms API credentials:

     *  VoIPms - API Credentials
    var $api_username   = 'yourname@youremail.com';
    var $api_password   = 'yourpassword';

Send an SMS message through VoIP.ms with the following command where smsnumber is the 10-digit number of the SMS recipient and "sms message" is the text message surrounded by quotes:

/root/sms-voip.ms/voipms-sms.php smsnumber "sms message"

NOTE: VoIP.ms has indicated that sooner or later there will be a penny per message charge for SMS messages; however, as of today, they’re still free.

19. SIP URI Calling with Incredible PBX for Asterisk-GUI (Demo: Dial L-E-N-N-Y)

With one line of dialplan code, you can add Speed Dials for free SIP URI calling worldwide. The dialplan code is stored in the [CallingRule_SIP_URI] context in extensions_custom.conf. Just clone one of the existing entries, designate an extension to dial to connect to the SIP URI, and enter the SIP URI for the destination. Numerous SIP providers support assignment of SIP URI’s to DIDs for unlimited free calling from anywhere in the world. Here’s a sample using a speed dial code of 53669 that connects you to SIP URI 2233435945@sip2sip.info: exten = 53669,1,Dial(SIP/2233435945@sip2sip.info)

20. IVR Demo of Incredible PBX Applications (Dial 7001)

The easiest way to try out a number of the Incredible PBX applications is to take the IVR Demo for a spin. Just pick up any phone and dial 7001. The sample code for the IVR is available for review and modification in extensions.conf. Just search for 7001. You can create your own IVRs and AutoAttendants under the Voice Menus tab in Asterisk-GUI. There’s also a sample Stealth AutoAttendant available by dialing 7000. This plays a brief greeting and then rings Ring Group #1. During the greeting, you could configure the application to allow button presses to branch to other applications on your PBX, hence the Stealth name since the codes are not disclosed to callers.

21. Incredible Backup & Restore with Incredible PBX for Asterisk-GUI

Incredible Backup and Restore scripts are included in the /root folder. These scripts make and restore snapshots of the settings on your server and should be used in conjunction with a full system backup solution. Asterisk-GUI includes its own backup snapshots under the Backup tab.

22. AsteriDex – The Poor Man’s Rolodex

AsteriDex is a web-based phonebook application for Incredible PBX. You can access it from the main web menu. Scripts are also available to import your contacts from Outlook and Google Contacts.

23. Voice Dialing with AsteriDex (Dial 411)

If you have voice recognition enabled on your server, you can call anyone in your AsteriDex database by dialing 411.

24. Speed Dialing with AsteriDex (Dial 412 or 000+)

For those without voice recognition, Incredible PBX includes two speed dialing utilities. The first is accessed by dialing 412. Then enter any 3-digit dialcode from your AsteriDex database to complete the call. If you’d prefer to skip the intermediate step, dial 000 + the 3-digit speed dial code desired. The call will be placed immediately using your default outbound routes. For those using a version of Incredible PBX before February 2015, see this link for the 000 Speed Dial patch.

For a complete listing of your AsteriDex dial codes, execute this query:

mysql -u root -ppassw0rd asteridex -e "select name,dialcode from user1 order by name"

25. Telephone Reminders (Dial 123)

Incredible PBX includes a sophisticated reminders system that lets you schedule individual or recurring reminders using your phone by dialing 123 or a web browser. A complete tutorial is available here. For phone reminders, a password is required to access the reminder system. You’ll find your password in /root/passwords.FAQ. It can be changed in /etc/asterisk/credentials.conf. Typically, these reminders set up a return call at a scheduled time that then plays back either a recorded message or a TTS message generated from the text you entered in the browser application. Incredible PBX for Asterisk-GUI also includes a new addition that lets you schedule web reminders that are delivered by email or SMS message. Links to the web-based reminders applications are in the main Incredible PBX web menu.

26. DISA Access with Incredible PBX for Asterisk-GUI (Dial D-I-S-A)

Direct Inward System Access (aka DISA) is one of the great PBX inventions of the last 50 years. It’s also one of the most dangerous. It lets someone connect to your PBX and obtain dial tone to place an outbound call using your trunks… on your nickel. Typically, it is offered as an option with an IVR or AutoAttendant. The DISA extension is preconfigured with Incredible PBX on extension 3472 (D-I-S-A). Use requires a password. Your randomized password can be found in /root/passwords.FAQ. It can be changed in /etc/asterisk/credentials.conf. Make it very secure before exposing DISA access to the outside world!

27. Yahoo! News (Dial 951)

Yahoo! news headlines are available by dialing 951. The news option also is included in the sample IVR application.

28. Weather Forecasts by Phone (Dial 949 or Z-I-P)

If you have voice recognition enabled on your server, you can retrieve a weather report for most cities in the world by dialing 949 and saying the name of the city plus the state, province, or country. For PBXs without voice recognition, you can obtain a weather forecast for most zip codes by dialing 947 (Z-I-P) and entering the 5-digit zip code.

29. ODBC Application Support for Asterisk

If you’ve recently logged into your server as root, Automatic Update #4 added ODBC/MySQL application support for Asterisk. You can try out a few sample applications that are included to get you started. Dial 222 and enter 12345 for the employee number. This retrieves an employee name from the MySQL timeclock database using Asterisk. Dial 223 to retrieve an AsteriDex name and phone number by entering the 3-character dialcode. You then have the option of placing the call by pressing 1. Once you have created accounts for Travelin’ Man 4, you can dial 864 (T-M-4) to WhiteList an IP address for that account after entering the account number and matching PIN. Use the * key for periods in the IP address. The code for all of the samples is in the following files in /etc/asterisk: odbc.conf and func_odbc.conf. If you create new MySQL databases, remember to add corresponding entries in res_odbc.conf and /etc/odbc.ini. Then restart Asterisk: asterisk-restart.

30. Today in History (Dial T-O-D-A-Y)

It’s always interesting to find out what happened Today in History. And Incredible PBX now delivers it by phone. Just dial 86329 (T-O-D-A-Y) for a walk down memory lane.

31. Time of Day

Speaking of yesteryear, if you grew up dialing TI-4-1212 for the time of day, Ma Bell may have discontinued the service, but we haven’t. Now you can do it on your very own PBX. Just dial into the IVR (7001) and choose option 4.

But suppose you want your users to be able to dial in for the time directly by dialing extension 8463 (T-I-M-E). Well it’s easy. Just add one line to your Incredible PBX dialplan and then reload the dialplan.

sed -i '/CallingRule_extensions_custom/a exten => 8463,1,Goto(new-time,s,1)' /etc/asterisk/extensions_custom.conf

NOTE: Those with a Feb. 2015 or later version of Incredible PBX already have this feature.

Introducing WebMin: The Linux Swiss Army Knife

There is no finer Linux application than WebMin. There is no more dangerous Linux application than WebMin. You’ve been warned. We heartily recommend WebMin as a tool to LOOK at your server’s settings. We strongly discourage changing anything in WebMin unless you totally know what you are doing. This is especially true with management of Linux applications that make up the core of Incredible PBX: the Linux kernel, SendMail, IPtables, Apache, MySQL, PHP, and…

To access WebMin, click on the WebMin link in the main Incredible PBX web menu. The username is root. The password is your root password. WebMin has root privileges to your server. Reread paragraph 1 and act accordingly.

For an exhaustive tutorial on WebMin, download The Book of WebMin by Joe Cooper. For a more recent commercial offering, take a look at Michal Karzyński’s WebMin Administrator’s Cookbook.

Introducing phpMyAdmin: The MySQL Swiss Army Knife

The same caveats we expressed regarding WebMin apply to phpMyAdmin. It is a powerful tool for managing MySQL databases in the right hands. It is a dangerous tool in the wrong hands. Fortunately, Asterisk-GUI does not rely upon MySQL for anything, and we are phasing out the remaining Incredible PBX applications that still rely upon it. So there should be little need to use phpMyAdmin unless you are developing a customized database solution for your business. We’ve included phpMyAdmin just in case.

To access phpMyAdmin, click on the phpMyAdmin link in the main Incredible PBX web menu. For tutorials on phpMyAdmin, see the phpMyAdmin wiki. For an excellent commercial offering focused on the version of phpMyAdmin installed on your server, consider Mastering phpMyAdmin 3.4 for Effective MySQL Management by Marc Delisle.

Introducing SIP Gateways for Secure (and Free) Google Voice Calling

If you have difficulty finding the Google Chat option after setting up a new Google Voice account, follow this tutorial.

Enjoy your new Gotcha-Free PBX, and… Happy Groundhog’s Day! It’s always been one of the happiest days of the year around our house. It’s my mom’s birthday.

Originally published: Monday, February 2, 2015

Coming Next Week (with a little luck): The Gotcha-Free PBX Ubuntu Edition

Coming Soon: The Gotcha-Free PBX for the Raspberry Pi 2. Better hurry if you want one!

Support Issues. With any application as sophisticated as this one, you’re bound to have questions. Blog comments are a terrible place to handle support issues although we welcome general comments about our articles and software. If you have particular support issues, we encourage you to get actively involved in the PBX in a Flash Forums. It’s the best Asterisk tech support site in the business, and it’s all free! Please have a look and post your support questions there. Unlike some forums, ours is extremely friendly and is supported by literally hundreds of Asterisk gurus and thousands of users just like you. You won’t have to wait long for an answer to your question.

Need help with Asterisk? Visit the PBX in a Flash Forum.


Special Thanks to Our Generous Sponsors

FULL DISCLOSURE: ClearlyIP, Skyetel, Vitelity, DigitalOcean, Vultr, VoIP.ms, 3CX, Sangoma, TelecomsXchange and VitalPBX have provided financial support to Nerd Vittles and our open source projects through advertising, referral revenue, and/or merchandise. As an Amazon Associate and Best Buy Affiliate, we also earn from qualifying purchases. We’ve chosen these providers not the other way around. Our decisions are based upon their corporate reputation and the quality of their offerings and pricing. Our recommendations regarding technology are reached without regard to financial compensation except in situations in which comparable products at comparable pricing are available from multiple sources. In this limited case, we support our sponsors because our sponsors support us.

BOGO Bonaza: Enjoy state-of-the-art VoIP service with a $10 credit and half-price SIP service on up to $500 of Skyetel trunking with free number porting when you fund your Skyetel account. No limits on number of simultaneous calls. Quadruple data center redundancy. $25 monthly minimum spend required. Tutorial and sign up details are here.

The lynchpin of Incredible PBX 2020 and beyond is ClearlyIP components which bring management of FreePBX modules and SIP phone integration to a level never before available with any other Asterisk distribution. And now you can configure and reconfigure your new Incredible PBX phones from the convenience of the Incredible PBX GUI.

VitalPBX is perhaps the fastest-growing PBX offering based upon Asterisk with an installed presence in more than 100 countries worldwide. VitalPBX has generously provided a customized White Label version of Incredible PBX tailored for use with all Incredible PBX and VitalPBX custom applications. Follow this link for a free test drive!

Special Thanks to Vitelity. Vitelity is now Voyant Communications and has halted new registrations for the time being. Our special thanks to Vitelity for their unwavering financial support over many years and to the many Nerd Vittles readers who continue to enjoy the benefits of their service offerings. We will keep everyone posted on further developments.

Some Recent Nerd Vittles Articles of Interest…
